Reference: F23FJ
Brand: Tameson

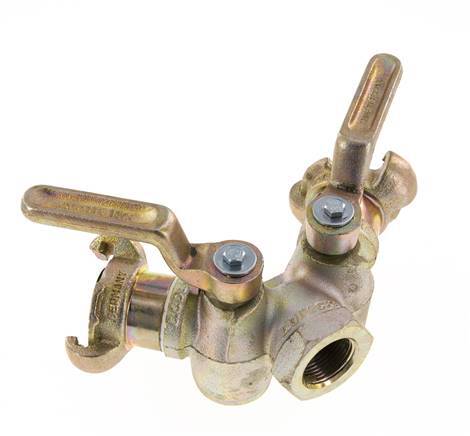

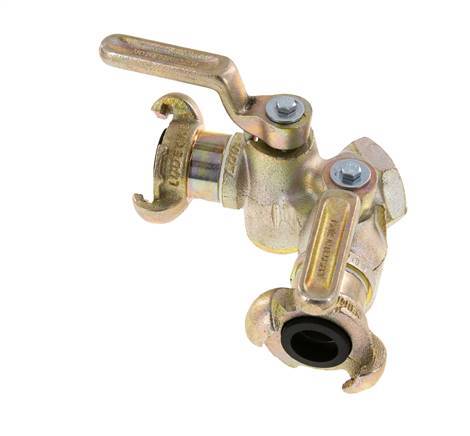

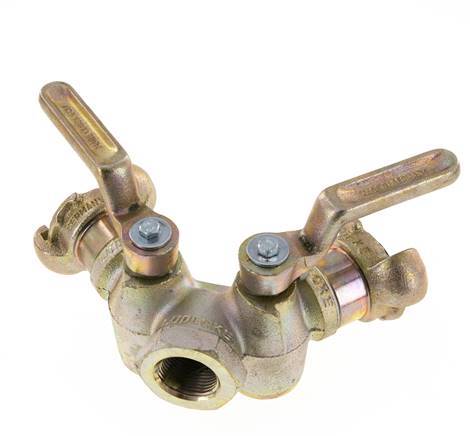

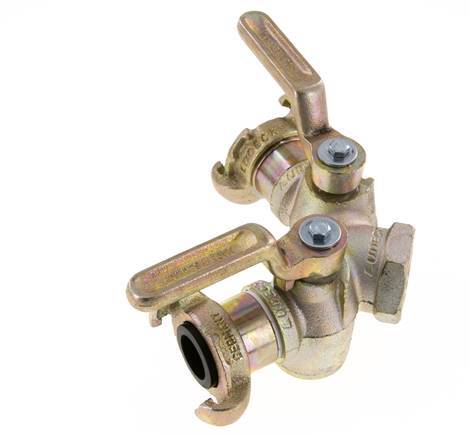

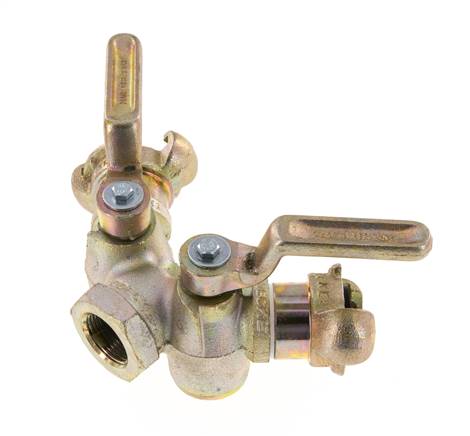

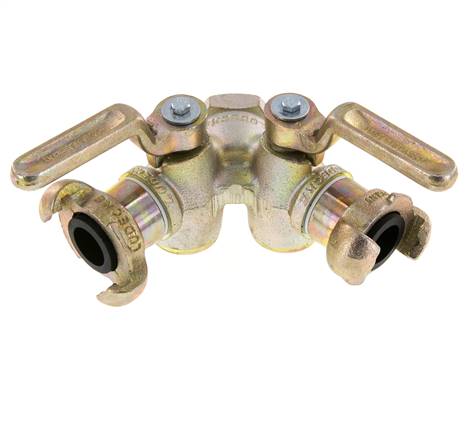

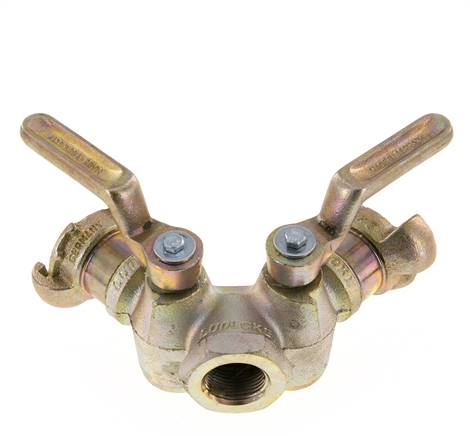

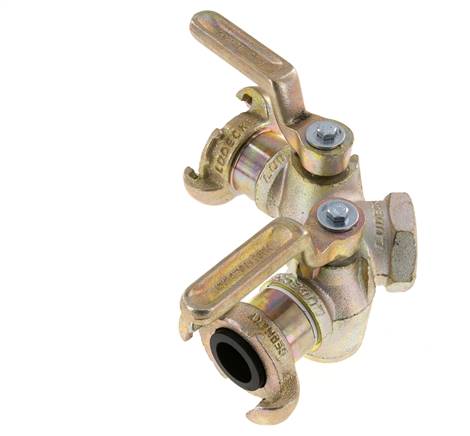

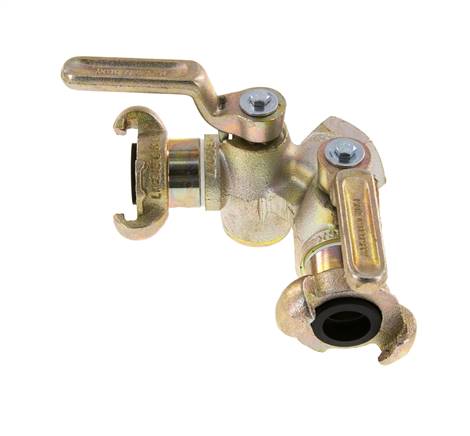

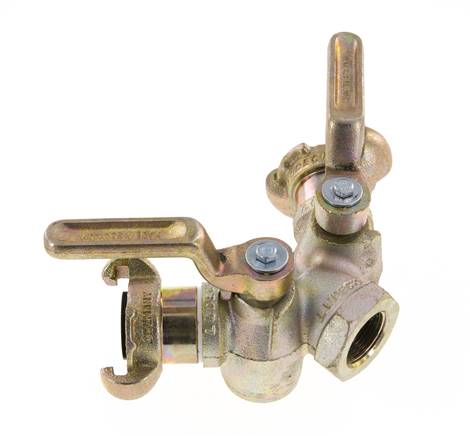

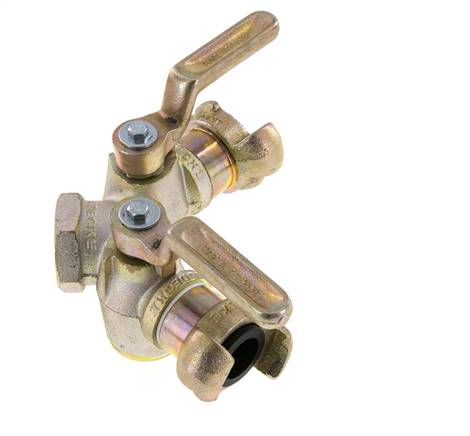

This is a double throttle valve with a 42 mm claw coupling (DIN 3487) connection and a G 3/4 inch female thread connection. When closed, the coupling side is vented allowing for safe decoupling. It is made of malleable cast iron with an NBR seal. The maximum operating pressure is 10 bar (145 psi) and it is suitable for temperatures between -15 to 80 °C (5 to 176 °F).

View all
£101.11
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 40 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a double throttle valve with a 42 mm claw coupling (DIN 3487) connection and a G 3/4 inch female thread connection. When closed, the coupling side is vented allowing for safe decoupling. It is made of malleable cast iron with an NBR seal. The maximum operating pressure is 10 bar (145 psi) and it is suitable for temperatures between -15 to 80 °C (5 to 176 °F).

Pros:

  • Adheres to DIN 3487
  • Coupling is vented when closed, allowing a safe decoupling

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Malleable cast iron
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Lug distance (mm)
42 mm
Operation
The way the valve works. For example via an electric actuator, a pinch wheel or a pneumatic actuator.
Handle
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-15
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Article compression class
PN 10
Seal, connection 2
Rubber
