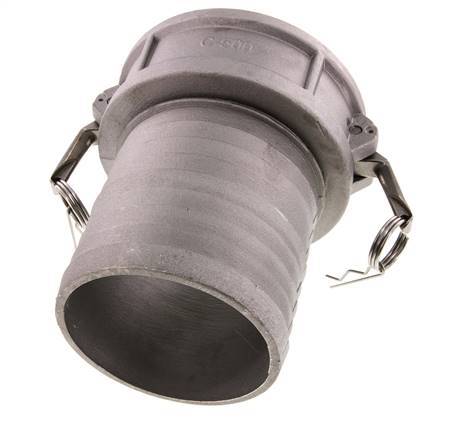

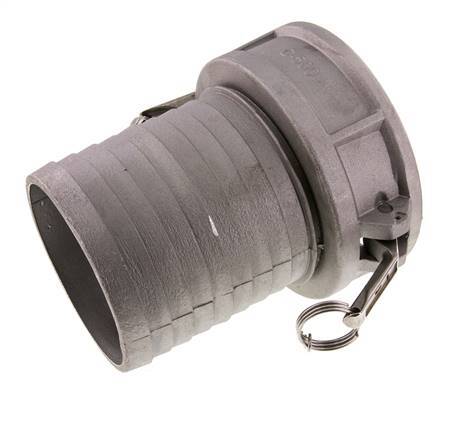

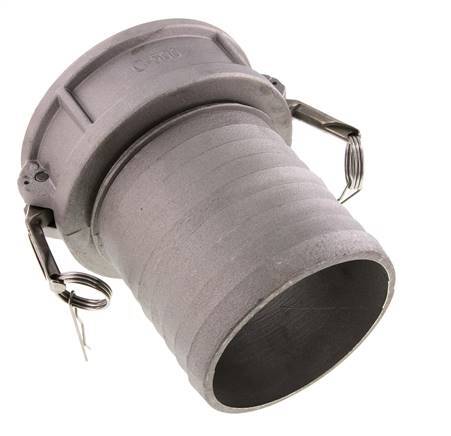

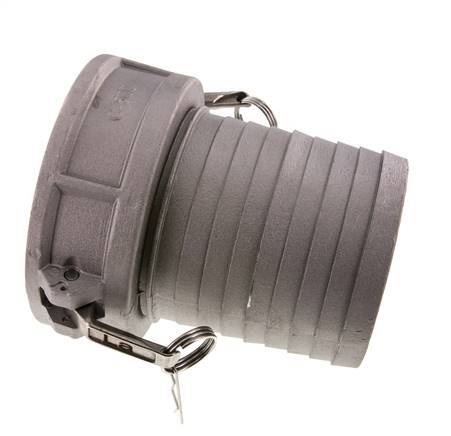

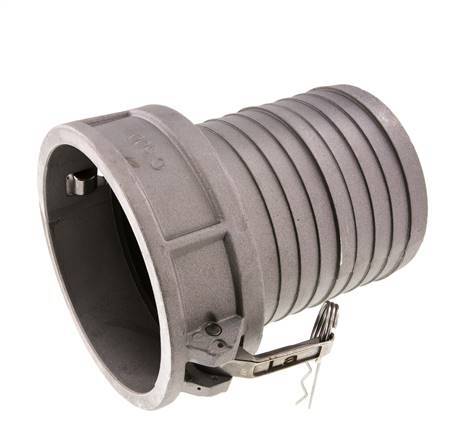

Camlock DN 120 (5'') Aluminium Coupling Hose Pillar (127 mm) Type C MIL-C-27487
Aluminium DN 120 (5 inch) Camlock coupling socket with 127 mm hose pillar. This is a Type C coupling (straight socket with a hose barb end). The maximum operating pressure is 5 bar (73 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
- Regular price
- £89.80
Description
Aluminium DN 120 (5 inch) Camlock coupling socket with 127 mm hose pillar. This coupling is a Type C coupling (straight socket with hose barb end). The maximum operating pressure is 5 bar (73 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Full bore with minimal pressure loss
- Suitable for solids, since there are no internal valves
- Aluminum plugs and sockets are lighter in weight than stainless steel
- The coupling adheres to the MIL-C-27487 standard
- It has safety cotter pins to prevent accidental decoupling
