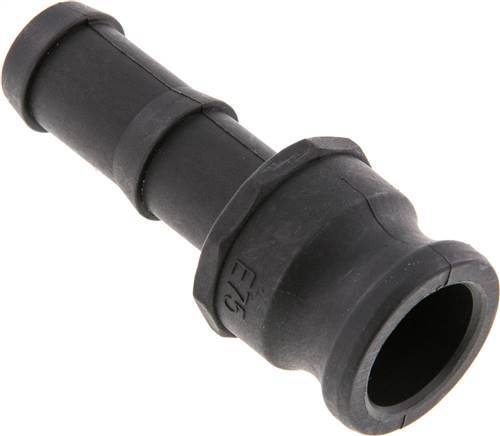

Camlock DN 20 (3/4'') Polypropylene Coupling Hose Pillar (19 mm) Type E MIL-C-27487 [2 Pieces]
![Camlock DN 20 (3/4'') Polypropylene Coupling Hose Pillar (19 mm) Type E MIL-C-27487 [2 Pieces]](http://tameson.co.uk/cdn/shop/files/f23wd.ef11e4fd_0dc98e62-3d97-44ef-be5c-46de859de4f8.jpg?v=1715533768)
![Camlock DN 20 (3/4'') Polypropylene Coupling Hose Pillar (19 mm) Type E MIL-C-27487 [2 Pieces]](http://tameson.co.uk/cdn/shop/files/f23wd.ef11e4fd_0dc98e62-3d97-44ef-be5c-46de859de4f8.jpg?height=232&v=1715533768&width=232)
Polypropylene DN 20 (3/4 inch) Camlock coupling adapter (male) with 19 mm hose pillar. This is a Type E coupling (plug with a hose barb end). The maximum operating pressure is 6 bar (87 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an EPDM seal. The coupling adheres to the MIL-C-27487 standard.
Contains 2 pieces
- Regular price
- £3.08
Description
Polypropylene DN 20 (3/4 inch) Camlock coupling adapter (male) with 19 mm hose pillar. This coupling is a Type E coupling (plug with hose barb end). The maximum operating pressure is 6 bar (87 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an EPDM seal. The coupling adheres to the MIL-C-27487 standard.
The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Full bore with minimal pressure loss
- Suitable for solids, since there are no internal valves
- The coupling adheres to the MIL-C-27487 standard
