Camlock DN 60 (2 1/2'') Brass Coupling Hose Pillar (63 mm) Type E MIL-C-27487

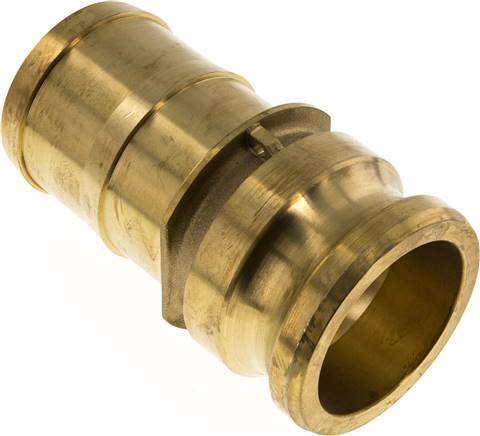

Brass DN 60 (2 1/2 inch) Camlock coupling adapter (male) with 63 mm hose pillar. This is a Type E coupling (plug with a hose barb end). The maximum operating pressure is 11 bar (160 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
- Regular price
- £36.29
Description
Brass DN 60 (2 1/2 inch) Camlock coupling adapter (male) with 63 mm hose pillar. This coupling is a Type E coupling (plug with hose barb end). The maximum operating pressure is 11 bar (160 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Full bore with minimal pressure loss
- Suitable for solids, since there are no internal valves
- The coupling adheres to the MIL-C-27487 standard
