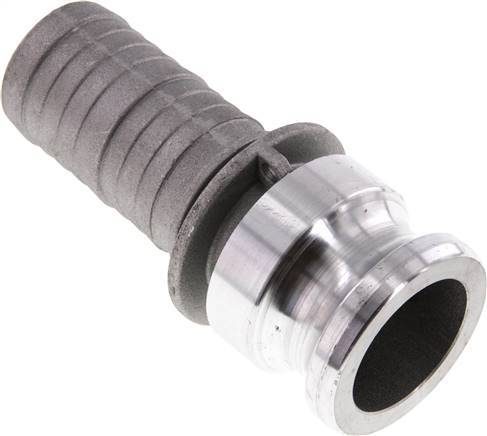

Camlock DN 40 (1 1/2'') Aluminium Coupling Hose Pillar (38 mm) Type E MIL-C-27487

Camlock DN 40 (1 1/2'') Aluminium Coupling Hose Pillar (38 mm) Type E MIL-C-27487
Camlock DN 40 (1 1/2'') Aluminium Coupling Hose Pillar (38 mm) Type E MIL-C-27487
Image may vary slightly
See specifications for accurate information.
Reference: F23X4
Brand: Tameson

Aluminium DN 40 (1 1/2 inch) Camlock coupling adapter (male) with 38 mm hose pillar. This is a Type E coupling (plug with a hose barb end). The maximum operating pressure is 18 bar (261 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

View all
Regular price
£5.58
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 230 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

Aluminium DN 40 (1 1/2 inch) Camlock coupling adapter (male) with 38 mm hose pillar. This coupling is a Type E coupling (plug with hose barb end). The maximum operating pressure is 18 bar (261 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

  • Full bore with minimal pressure loss
  • Suitable for solids, since there are no internal valves
  • Aluminum plugs and sockets are lighter in weight than stainless steel
  • The coupling adheres to the MIL-C-27487 standard
