Camlock DN 140 (6'') Stainless Steel Safety Coupling End Cap Type DC MIL-C-27487

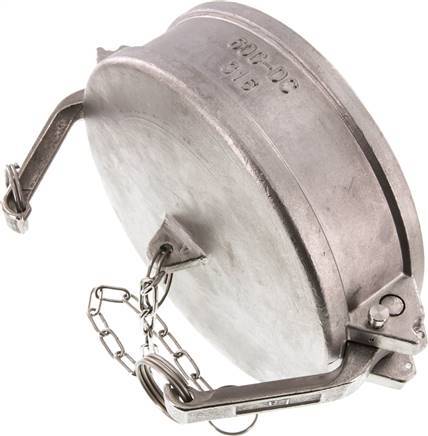

Stainless steel DN 140 (6 inch) end cap for Camlock coupling plug. The maximum operating pressure is 7 bar (102 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
- Regular price
- £243.63
Description
Stainless steel DN 140 (6 inch) end cap for Camlock coupling plug. The maximum operating pressure is 7 bar (102 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

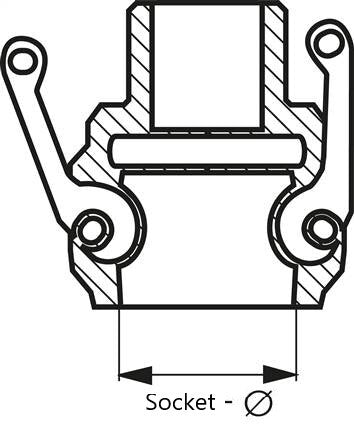

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Stainless steel plugs and sockets have excellent corrosion resistance
- The coupling adheres to the MIL-C-27487 standard
- It has safety cotter pins to prevent accidental decoupling
