Camlock DN 25 (1'') Stainless Steel Coupling Hose Pillar (25 mm) Type E EN 14420-7 (DIN 2828)

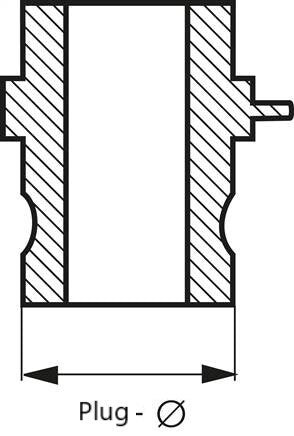

Stainless steel DN 25 (1 inch) Camlock coupling adapter (male) with 25 mm hose pillar. This is a Type E coupling (plug with a hose barb end). The maximum operating pressure is 18 bar (261 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the EN 14420-7 (DIN 2828) standard.
- Regular price
- £12.92
Description
Stainless steel DN 25 (1 inch) Camlock coupling adapter (male) with 25 mm hose pillar. This coupling is a Type E coupling (plug with hose barb end). The maximum operating pressure is 18 bar (261 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the EN 14420-7 (DIN 2828) standard.
The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Full bore with minimal pressure loss
- Suitable for solids, since there are no internal valves
- Stainless steel plugs and sockets have excellent corrosion resistance
- The coupling adheres to the EN 14420-7 (DIN 2828) standard
