Support Bend for Jet Pipe 75-B Storz Aluminum DIN 14368

Support Bend for Jet Pipe 75-B Storz Aluminum DIN 14368
Support Bend for Jet Pipe 75-B Storz Aluminum DIN 14368
Image may vary slightly
See specifications for accurate information.
Reference: F24MF
Brand: Tameson

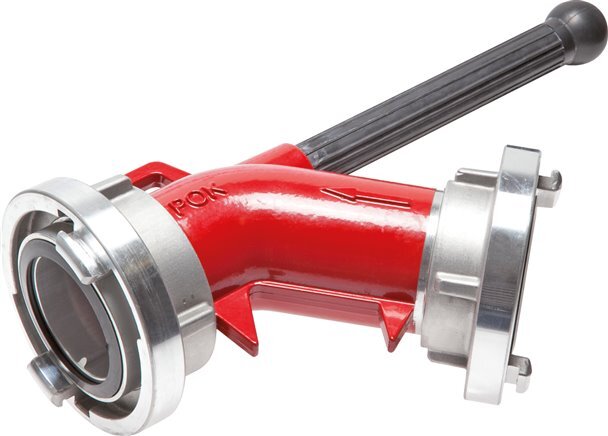

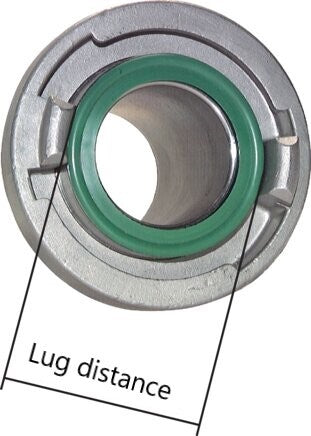

This is a support bend for a jet pipe 75-B Storz (lug distance of 89 mm) connection port. The output is rotatable. It is made of aluminum. The maximum operating pressure is 16 bar (232 psi). It is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

View all
£180.09
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a support bend for a jet pipe 75-B Storz (lug distance of 89 mm) connection port. The output is rotatable. It is made of aluminum. The maximum operating pressure is 16 bar (232 psi). It is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

Pros:

  • Adheres to DIN 14368
  • Output is rotatable

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Storz size
75-B (Storz)
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
110
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
