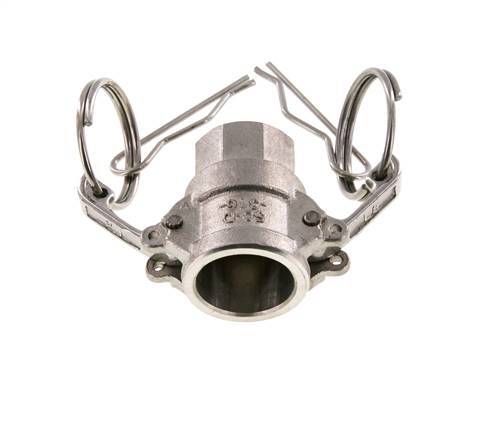

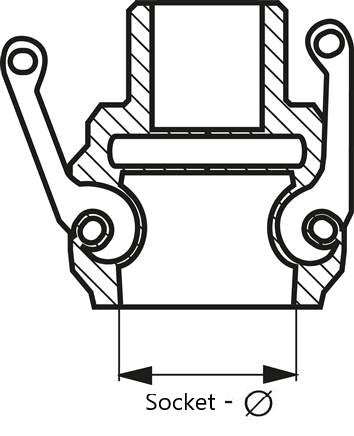

Camlock DN 15 (1/2'') Stainless Steel Coupling 1/2'' Female NPT Thread Type D MIL-C-27487
Stainless steel DN 15 (1/2 inch) Camlock coupling socket with 1/2 inch female NPT thread. This is a Type D coupling (straight socket with female threaded end). The maximum operating pressure is 11 bar (160 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
- Regular price
- £12.36
Description
Stainless steel DN 15 (1/2 inch) Camlock coupling socket with 1/2 inch female NPT thread. This coupling is a Type D coupling (straight socket with female threaded end). The maximum operating pressure is 11 bar (160 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Full bore with minimal pressure loss
- Suitable for solids, since there are no internal valves
- Stainless steel plugs and sockets have excellent corrosion resistance
- The coupling adheres to the MIL-C-27487 standard
- It has safety cotter pins to prevent accidental decoupling
