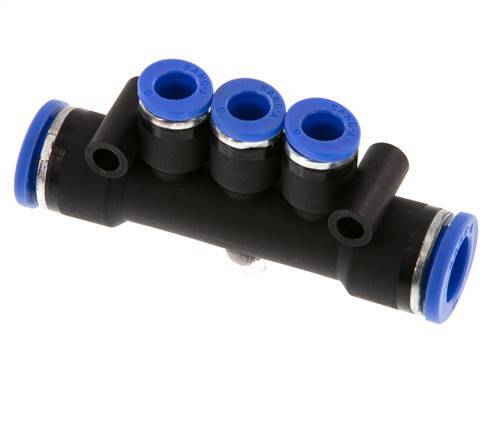

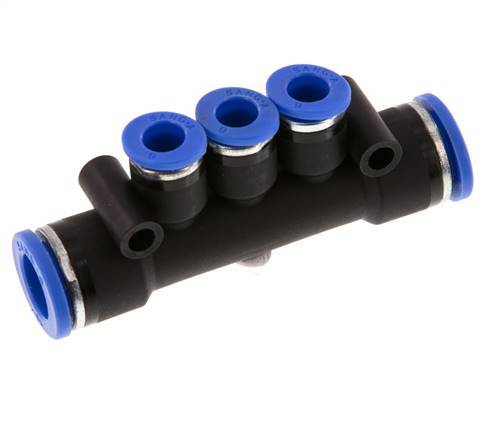

6mm x 10mm 3-way Manifold Push-in Fitting Brass/PA 66 NBR
This is a 3-way manifold. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. It has three outlet ports with 6 mm push-in connection and two inlet ports with 10 mm push-in connection. The body is made of brass / PA 66. The connection ports are made of brass and PA 66. The seal material is NBR. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F).
- Regular price
- £7.78
Description
This is a 3-way manifold. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. It has three outlet ports with 6 mm push-in connection and two inlet ports with 10 mm push-in connection. The body is made of brass / PA 66. The connection ports are made of brass and PA 66. The seal material is NBR. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.
Pros:
- Quick and easy installation and release of pneumatic tubing
- It can be used for vacuum applications
- Suitable for use with oiled and unoiled compressed air
