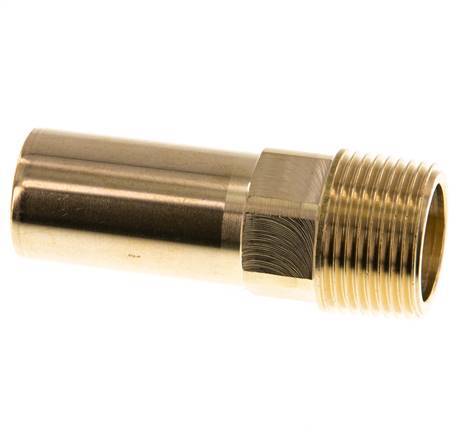

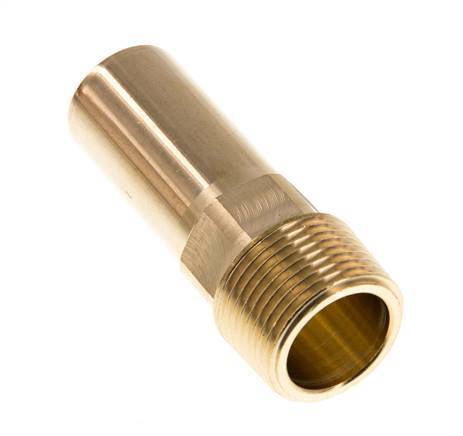

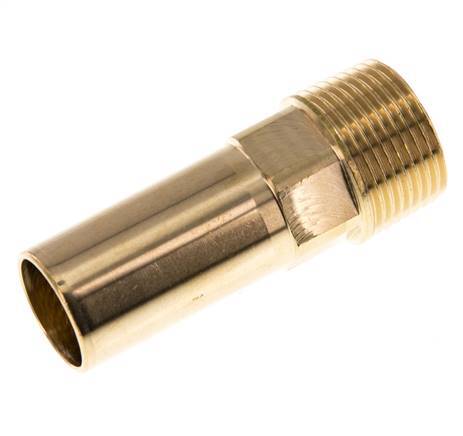

22mm x R3/4'' Plug-in Fitting with Male Threads Brass
This is a plug-in fitting. It has connection ports to connect a push-in fitting to a hose, pipe or another pneumatic component. Connection 1 is a 22 mm plug, also called a plug-in connection and connection 2 has R 3/4 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of brass. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).
- Regular price
- £15.12
Description
This is a plug-in fitting. It has connection ports to connect a push-in fitting to a hose, pipe or another pneumatic component. Connection 1 is a 22 mm plug, also called a plug-in connection and connection 2 has R 3/4 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of brass. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).
Pros:
- The male thread connection has an O-ring seal
- It can be used for vacuum applications
- This push-in fitting has an outer hexagon for mounting
- Suitable for use with oiled and unoiled compressed air, neutral gasses, and cold water
