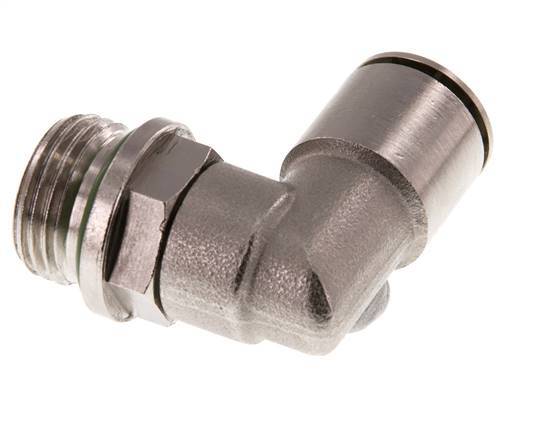

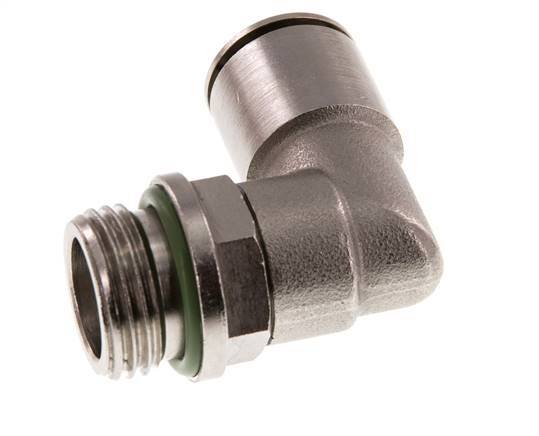

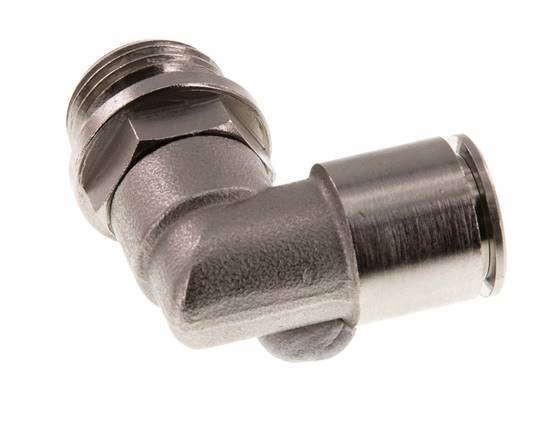

14mm x G1/2'' 90deg Elbow Push-in Fitting with Male Threads Brass FKM Rotatable

This is a 2 connection elbow push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 14 mm push-in port. Connection 2 has G 1/2 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of nickel plated brass. The seal material is FKM. The operating pressure range is -0.98 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 150 °C (-4 to 302 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• The male thread connection has an O-ring seal
• It can be used for vacuum applications
• It can be used for high temperature applications
• The threaded connection is rotatable
• This push-in fitting has an outer hexagon for mounting
• Suitable for pneumatics, compressed air distribution, and vacuum technology applications
