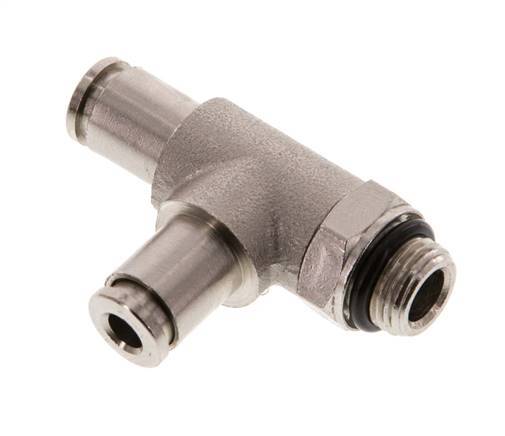

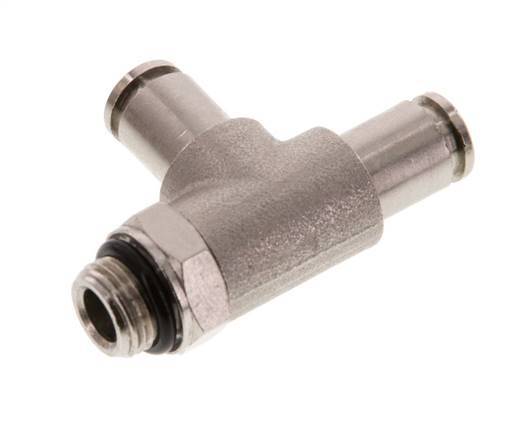

4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable

4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
4mm x G1/8'' Right Angle Tee Push-in Fitting with Male Threads Brass NBR Rotatable
Image may vary slightly
See specifications for accurate information.
Reference: F26EA
Brand: Tameson

This is a 3 connection right angle tee push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 are 4 mm push-in ports and connection 3 has G 1/8 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of nickel plated brass. The seal material is NBR. The operating pressure range is -0.98 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F).

View all
Regular price
£5.81
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 65 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Related products

This is a 3 connection right angle tee push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 are 4 mm push-in ports and connection 3 has G 1/8 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of nickel plated brass. The seal material is NBR. The operating pressure range is -0.98 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

  • Quick and easy installation and release of pneumatic tubing
  • The male thread connection has an O-ring seal
  • It can be used for vacuum applications
  • The threaded connection is rotatable
  • This push-in fitting has an outer hexagon for mounting
  • Suitable for pneumatics, compressed air distribution, and vacuum technology applications
