Reference: F275J-X5
Brand: Tameson

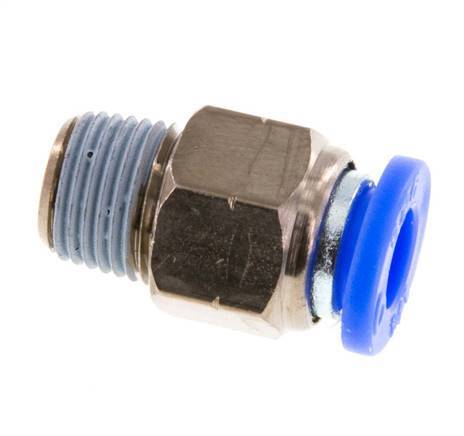

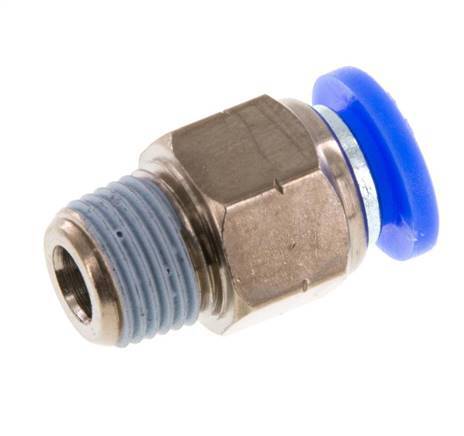

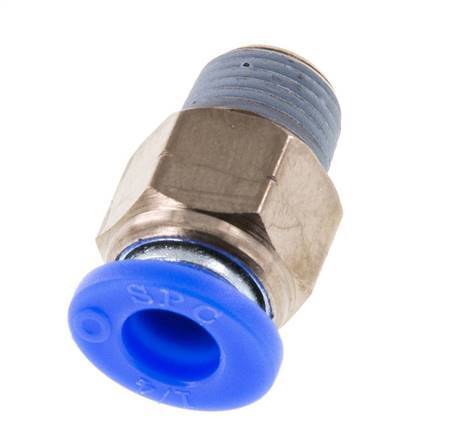

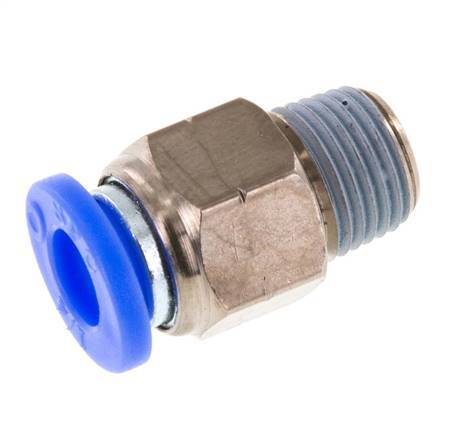

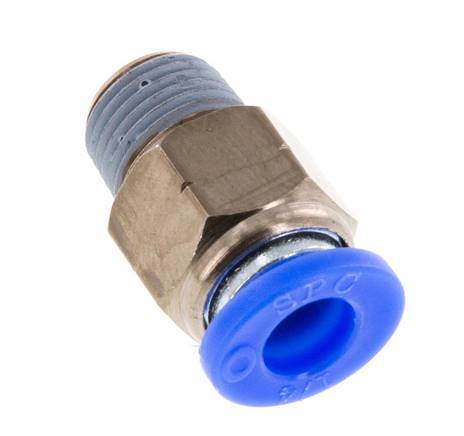

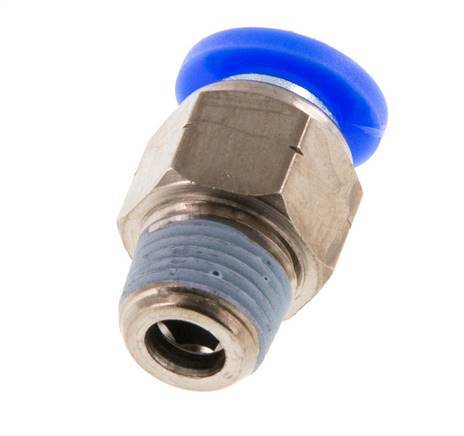

This is a 2 connection straight push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 1/4 inch (6.35 mm) push-in port. Connection 2 has 1/8 inch NPT male threads. The male thread connection has PTFE-coating. The body is made of brass. The connection ports are made of POM and PBT. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 60 °C (32 to 140 °F).

Contains 5 pieces

View all
£7.79
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 198 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Related products

Description

This is a 2 connection straight push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 1/4 inch (6.35 mm) push-in port. Connection 2 has 1/8 inch NPT male threads. The male thread connection has PTFE-coating. The body is made of brass. The connection ports are made of POM and PBT. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 60 °C (32 to 140 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

  • Quick and easy installation and release of pneumatic tubing
  • The male thread connection is PTFE-coated
  • It can be used for vacuum applications
  • This push-in fitting has an outer hexagon for mounting
  • This fitting can be used with hoses of imperial size
  • Suitable for use with oiled and unoiled compressed air
