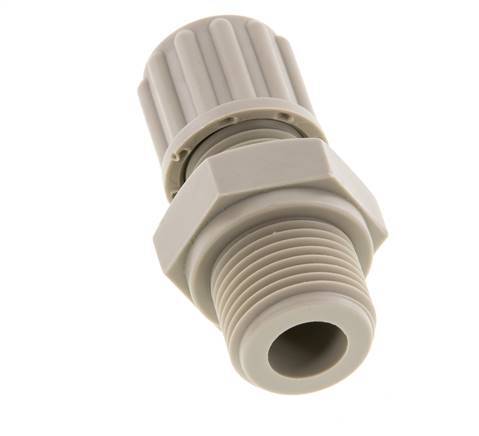

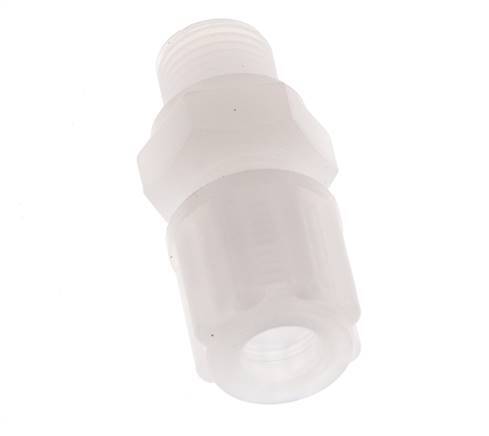

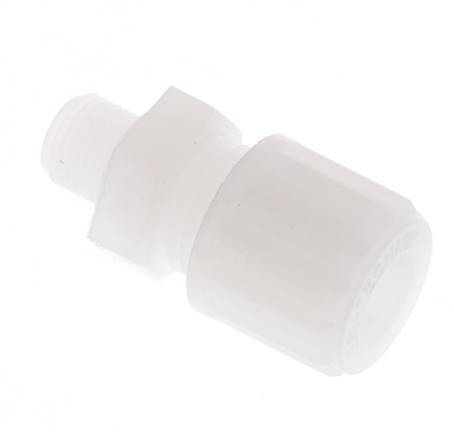

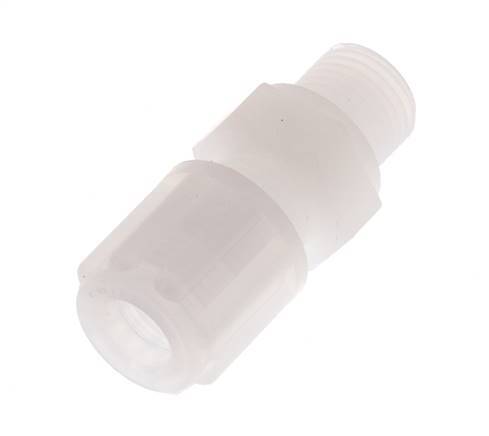

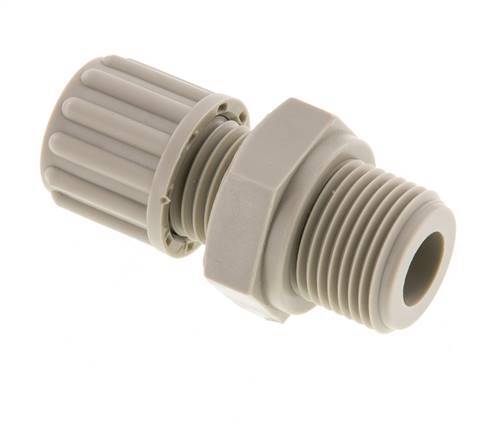

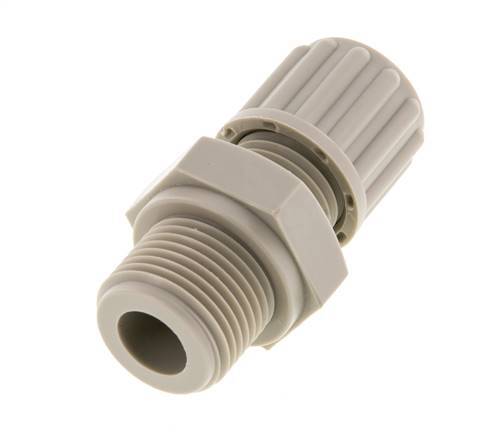

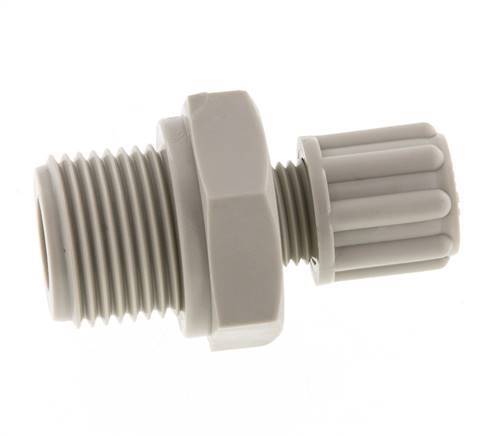

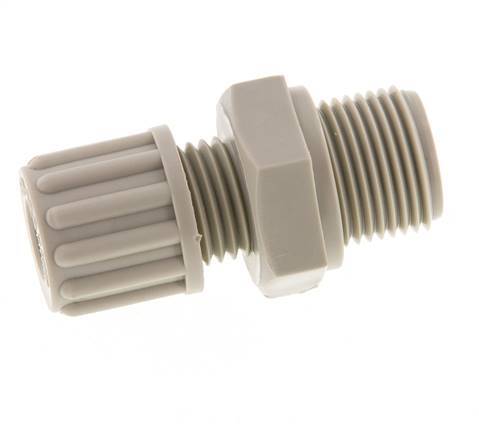

8x6mm & G1/8'' PVDF Straight Compression Fitting with Male Threads 10 bar

This pvdf straight screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 8x6 mm compression ring. Connection 2 has male G 1/8 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from -40 to 140 °C (-40 to 284 °F).

Pros:

• It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance
• It has FDA approval

Cons:

• Since it has a compression ring connection, it can only be used once
• It cannot be used with PTFE hoses
