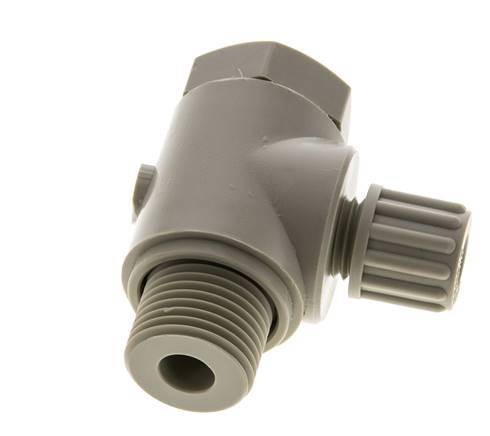

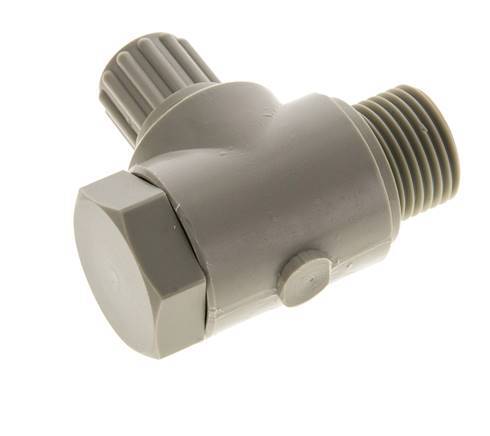

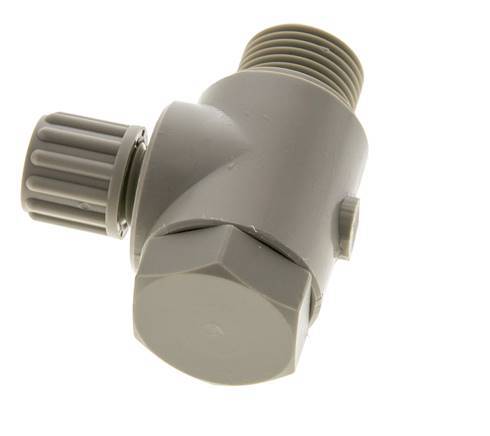

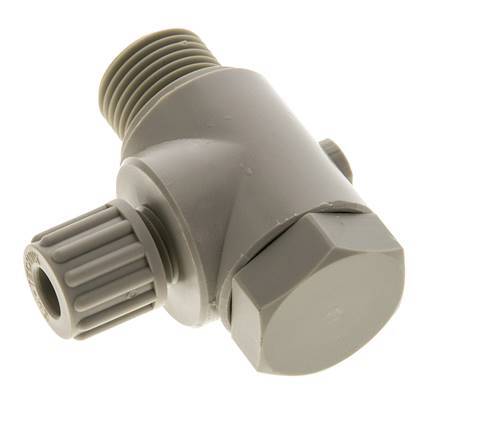

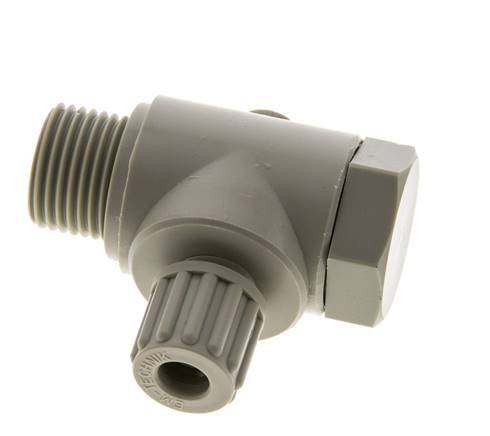

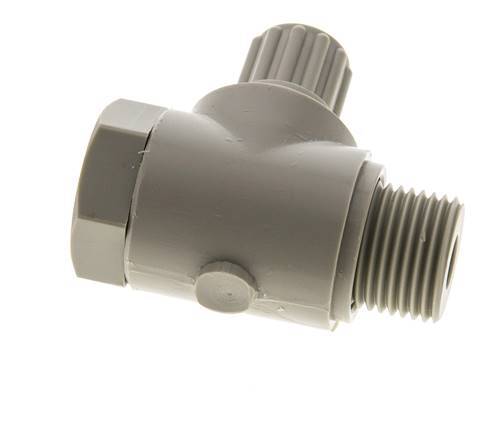

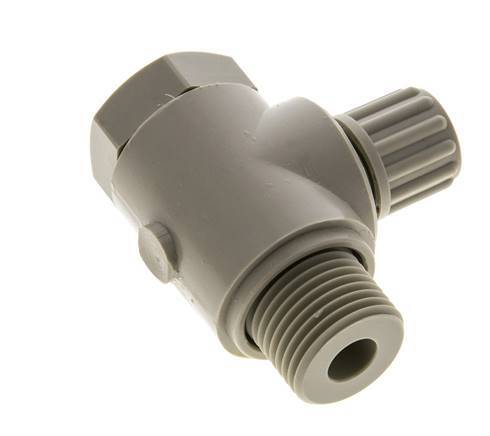

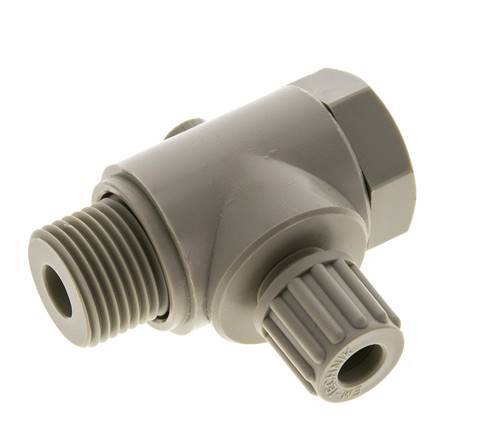

8x6mm & G1/2'' PP Elbow Compression Fitting with Male Threads with Banjo Bolt 10 bar

This pp elbow screw in connection is designed with one male threaded connection, one compression ring connection port and with a banjo bolt. Connection 1 is a 8x6 mm compression ring. Connection 2 has male G 1/2 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).

Pros:

• It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance

Cons:

• Since it has a compression ring connection, it can only be used once
• It cannot be used with PTFE hoses
