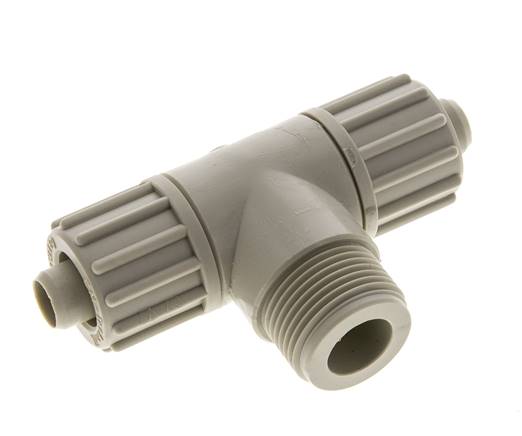

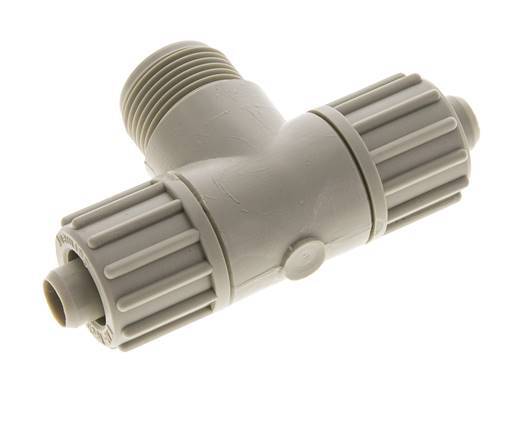

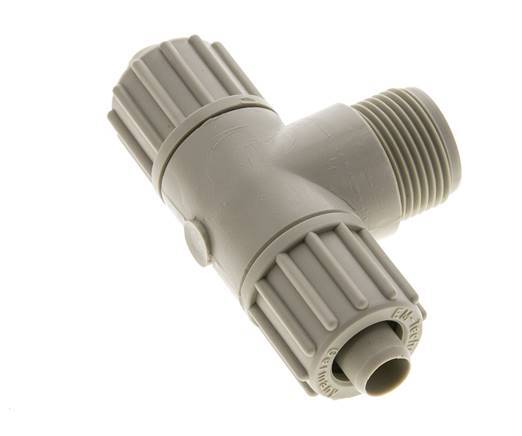

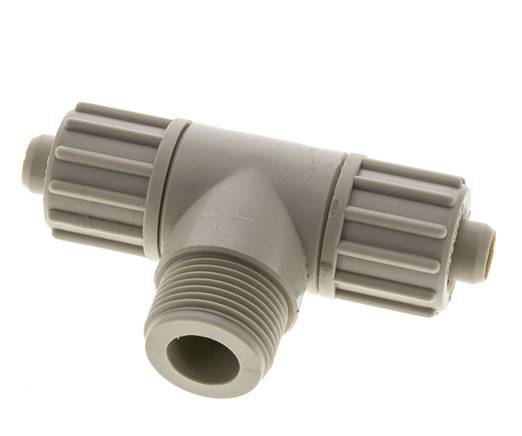

16x10mm & G3/4'' PP T-Shape Tee Compression Fitting with Male Threads 10 bar PVC and PA

This pp Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 16x10 mm compression ring. Connection 2 is a 16x10 mm compression ring. Connection 3 has male G 3/4 inch threads. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-0.95 to 145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).

Pros:

• Frequent assembly and disassembly possible
• No hose clip or projecting mesh wires of the metal braid

Cons:

• This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel
