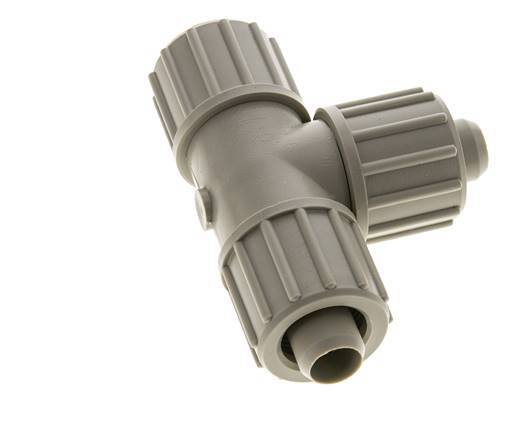

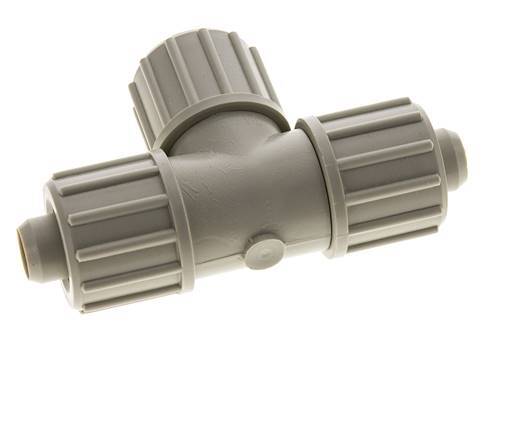

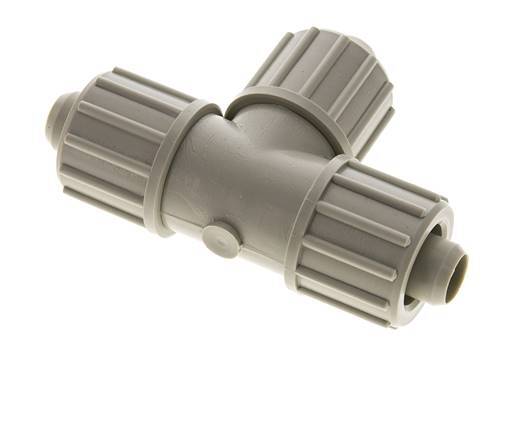

20x13mm PP T-Shape Tee Compression Fitting 10 bar PVC and PA
This pp Tee screw connection is designed with three compression ring connections in a T-shape. Connection 1 is a 20x13 mm compression ring. Connection 2 is a 20x13 mm compression ring. Connection 3 is a 20x13 mm compression ring. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-0.95 to 145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).
- Regular price
- £66.95
Description
This pp Tee screw connection is designed with three compression ring connections in a T-shape. Connection 1 is a 20x13 mm compression ring. Connection 2 is a 20x13 mm compression ring. Connection 3 is a 20x13 mm compression ring. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-0.95 to 145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).
Pros:
- Frequent assembly and disassembly possible
- No hose clip or projecting mesh wires of the metal braid
Cons:
- This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel
