Reference: F292F
Brand: Tameson
This aluminum elbow screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 9x6
View all
£14.87
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 60 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

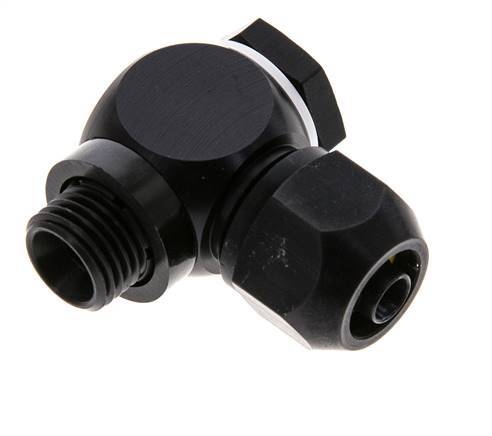

This aluminum elbow screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 9x6 mm compression ring. Connection 2 has male G 1/4 inch threads. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -10 to 60 °C (14 to 140 °F).

Pros:

  • Frequent assembly and disassembly possible
  • No hose clip or projecting mesh wires of the metal braid

Cons:

  • This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel
