Reference: F29CM
Brand: Tameson

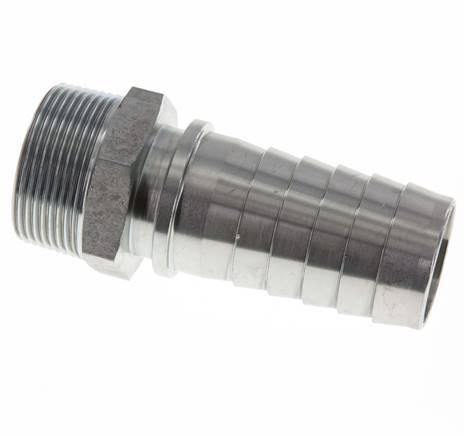

This zink plated steel hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is a hose pillar, designed for a hose with an internal / external diameter of 38x54 mm. Connection 2 has R 1-1/2 inch male threads. The maximum pressure is 18 bar (261 psi). The fitting is suitable for saturated steam max. +210 °C (410 °F), water up to +120 °C (248 °F). It is made in accordance with the DIN EN 14423.

View all
£25.51
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 42 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This zink plated steel hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is a hose pillar, designed for a hose with an internal / external diameter of 38x54 mm. Connection 2 has R 1-1/2 inch male threads. The maximum pressure is 18 bar (261 psi). The fitting is suitable for saturated steam max. +210 °C (410 °F), water up to +120 °C (248 °F). It is made in accordance with the DIN EN 14423.

Pros:

  • Adheres to DIN EN 14423
  • Suitable for saturated steam

Downloads

Specifications

Thread
1 1/2 inch
Hose inside x outside
38x54 mm
Connection type
Outer thread conical BSPT-R, Hose pillar
Material
Housing material.
Steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
18
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
210
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN 14423
Fitting features
Saturated steam
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Surface protection connection 2
Galvanic zink plated
Shape
Straight
With drain
No
