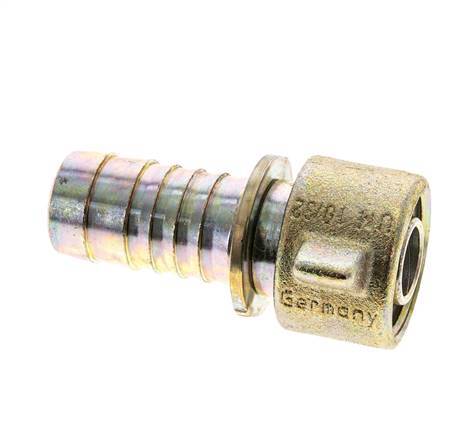

25 mm (1'') & G1'' Steel / Malleable cast iron Hose Barb Female Safety collars DIN 8537/20033
This steel / malleable cast iron hose screwed-on connection is designed with a nozzle and a female thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 25 mm (1 inch). Connection 2 has G 1 inch female threads. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -40 to 95 °C (-40 to 203 °F). It is made in accordance with the DIN 8537/20033.
- Regular price
- £22.24
Description
This steel / malleable cast iron hose screwed-on connection is designed with a nozzle and a female thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 25 mm (1 inch). Connection 2 has G 1 inch female threads. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -40 to 95 °C (-40 to 203 °F). It is made in accordance with the DIN 8537/20033.
Note: Seals only in connection with the internal cone 1:4 or 1:3, not with a 60°-cone.
Pros:
- Adheres to DIN 8537/20033
- It has safety collars
