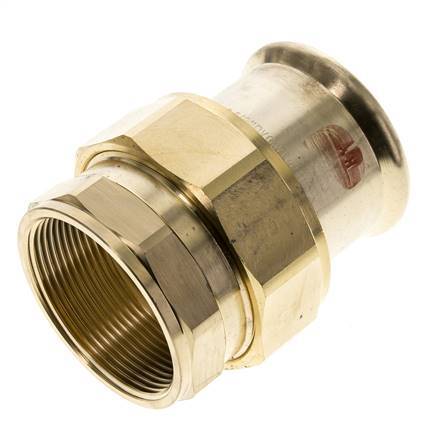

Union Press Fitting - 54mm Female & Rp 2'' Female - Copper alloy Flat Sealing
- Regular price
- £129.86
Description
This is a union straight press fitting made from copper alloy. The fitting has a female press port and a female threaded port. Connection 1 is designed for a tube with an outer diameter of 54 mm and connection 2 has Rp 2 inch female threads. The fitting has an FKM sealing ring. It also has a flat seal made of centellen. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 94 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
- It has a flat seal
