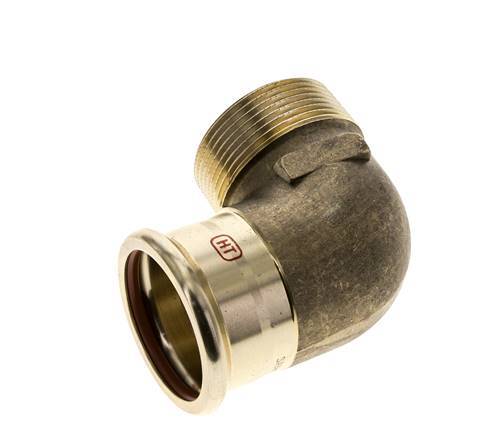

90deg Elbow Press Fitting - 42mm Female & R 1-1/2'' Male - Copper alloy
- Regular price
- £92.50
Description
This is a 90 degree elbow press fitting made from copper alloy. The fitting has a female press port and a male threaded port. Connection 1 is designed for a tube with an outer diameter of 42 mm and connection 2 has R 1-1/2 inch male threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 59 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
