Press Fitting - 18mm Female & 22mm - Copper alloy
Image may vary slightly
See specifications for accurate information.
Reference:
F29RX
Brand:
Tameson

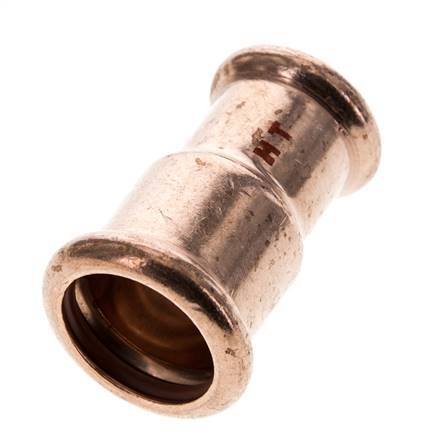

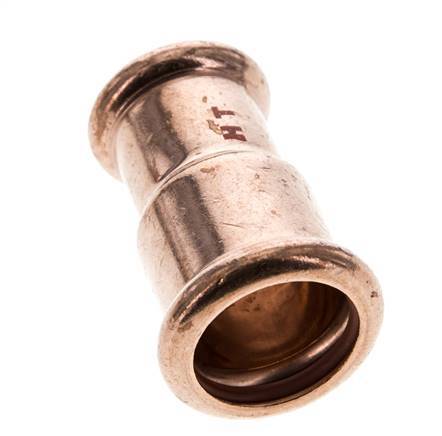

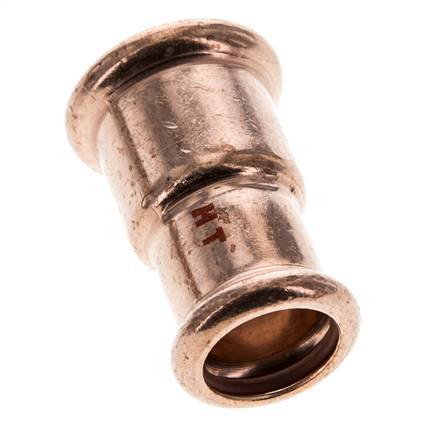

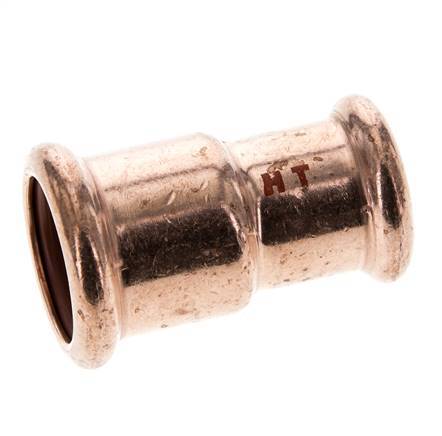

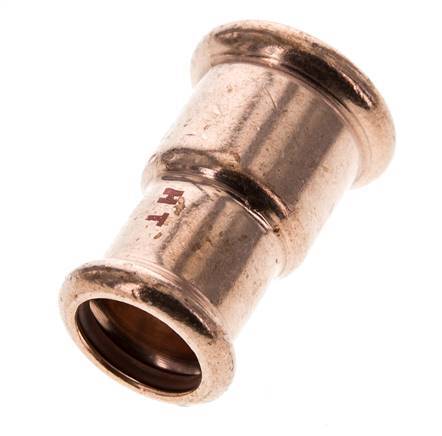

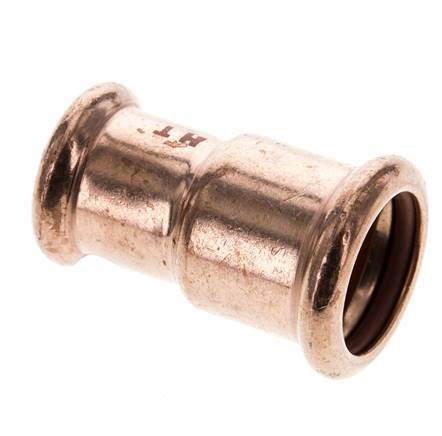

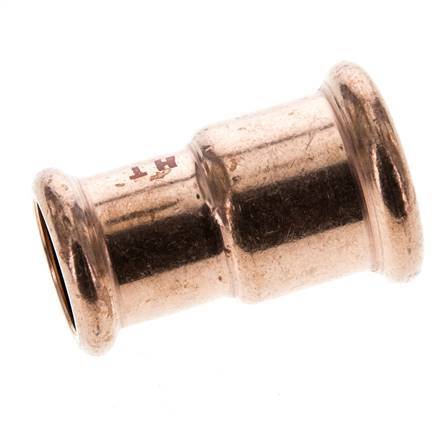

This is a reducing press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an ou
- Regular price
- £17.53
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days
Description
Specifications
Description
This is a reducing press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 18 mm and 22 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 48 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
