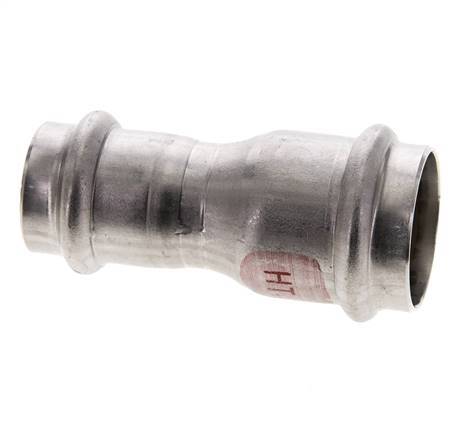

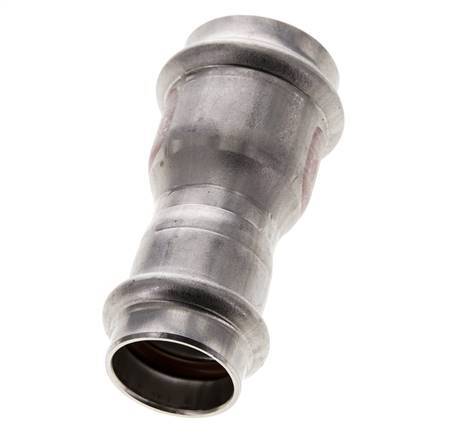

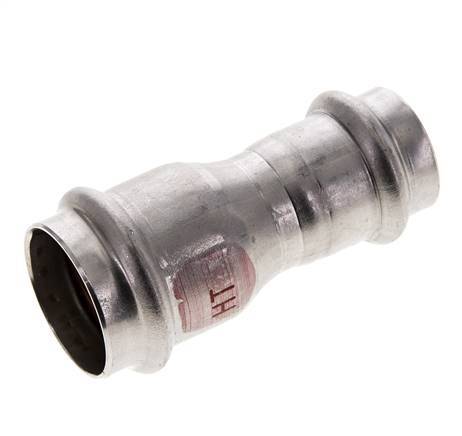

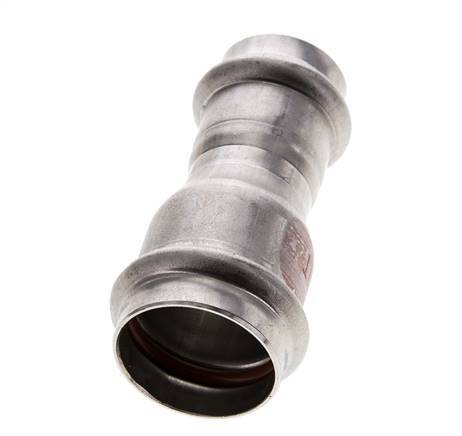

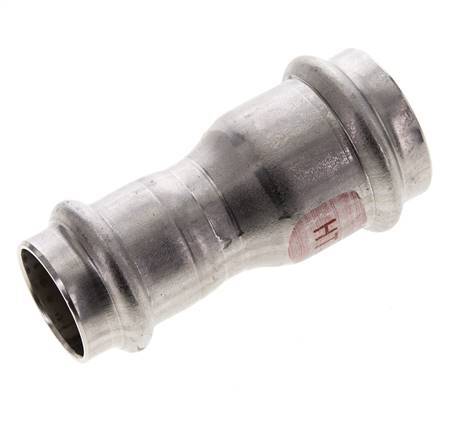

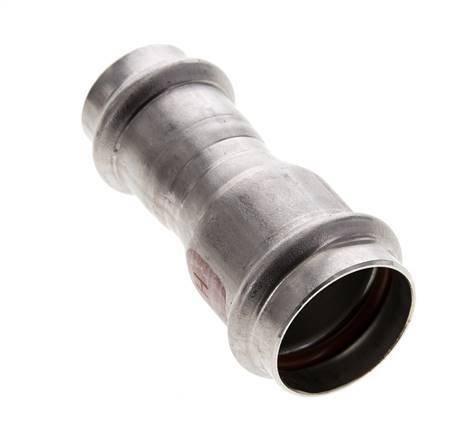

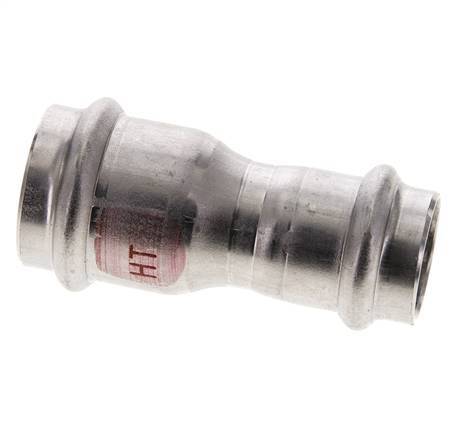

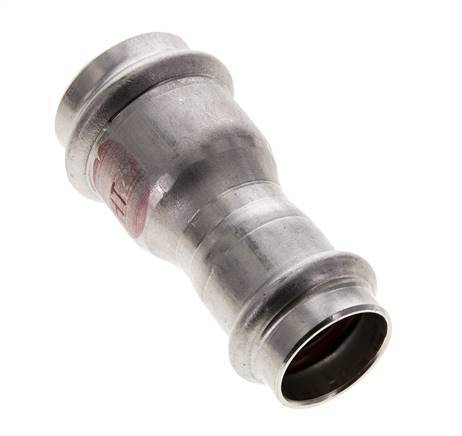

Press Fitting - 22mm Female & 28mm - Stainless Steel
Image may vary slightly
See specifications for accurate information.
Reference:
F29SC
Brand:
Tameson
This is a reducing press fitting made from stainless steel 1.4404. The fitting has two female press ports. Connection 1 and 2 are designed for a tube
- Regular price
- £43.17
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days
Description
Specifications
Description
This is a reducing press fitting made from stainless steel 1.4404. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 22 mm and 28 mm. The fitting has an FKM sealing ring. The maximum pressure is 25 bar (363 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 75 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
- Stainless steel material has better chemical resistance than other materials
