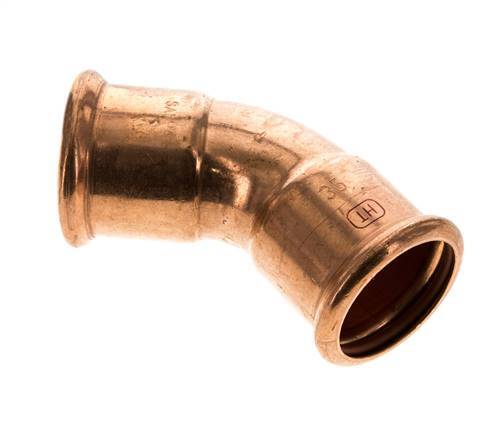

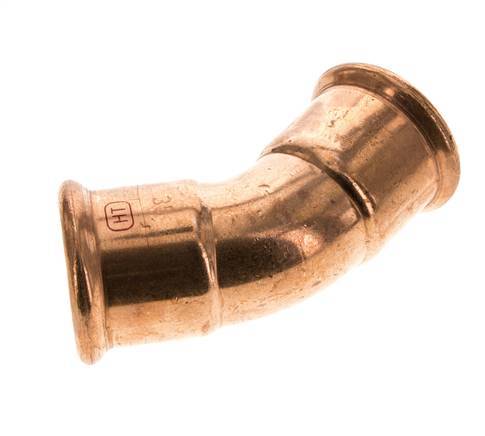

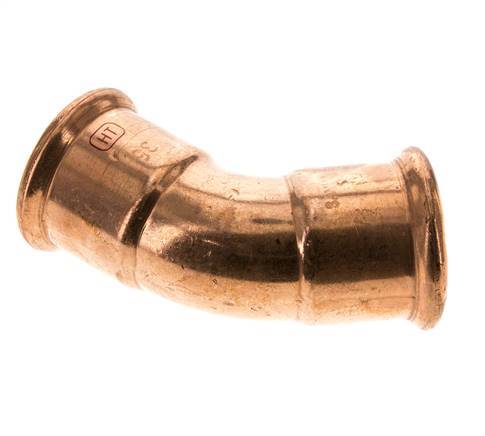

45deg Elbow Press Fitting - 35mm Female - Copper alloy
This is a 45 degree elbow press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 35 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 50 mm.
- Regular price
- £30.76
Description
This is a 45 degree elbow press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 35 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 50 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
