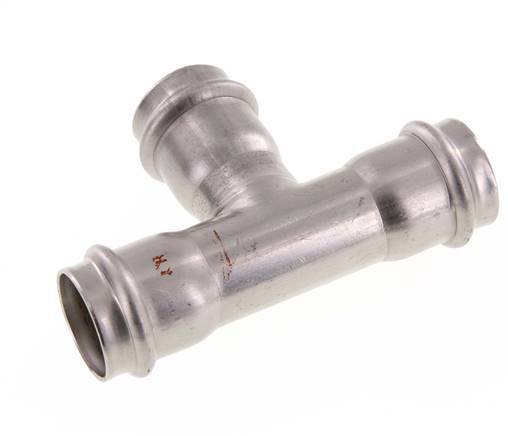

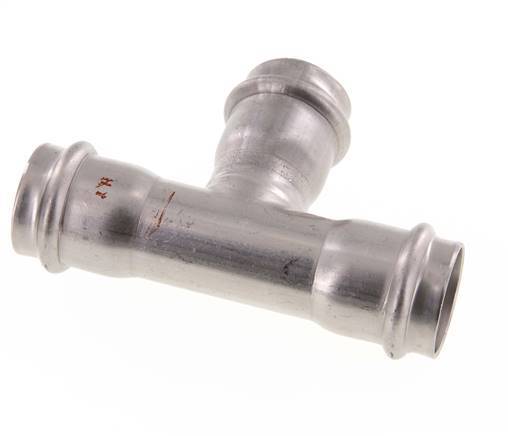

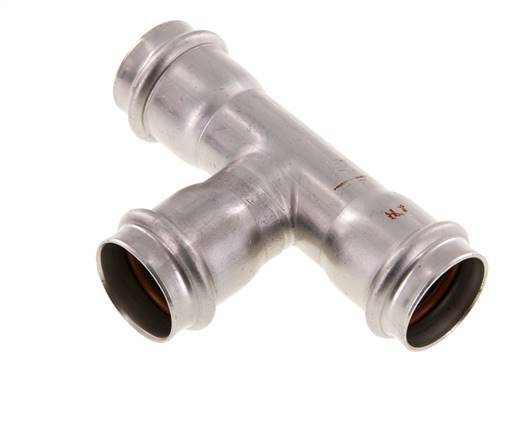

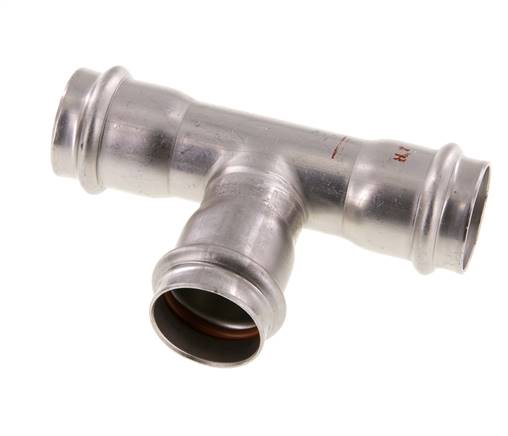

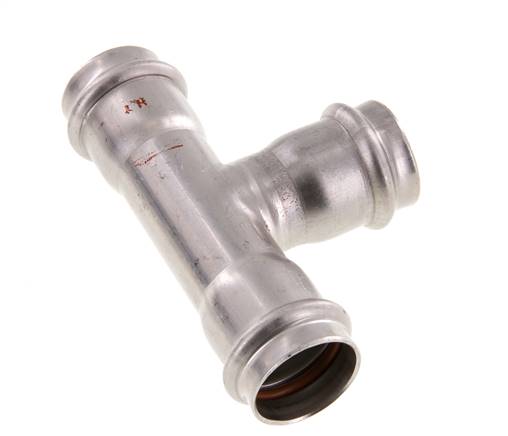

Tee Press Fitting - 28mm Female - Stainless Steel
This is a tee press fitting made from stainless steel 1.4404. The fitting has three female press ports. Connection 1, 2 and 3 are designed for a tube with an outer diameter of 28 mm. The fitting has an FKM sealing ring. The maximum pressure is 25 bar (363 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F).
- Regular price
- £36.28
Description
This is a tee press fitting made from stainless steel 1.4404. The fitting has three female press ports. Connection 1, 2 and 3 are designed for a tube with an outer diameter of 28 mm. The fitting has an FKM sealing ring. The maximum pressure is 25 bar (363 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F).
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
- Stainless steel material has better chemical resistance than other materials
