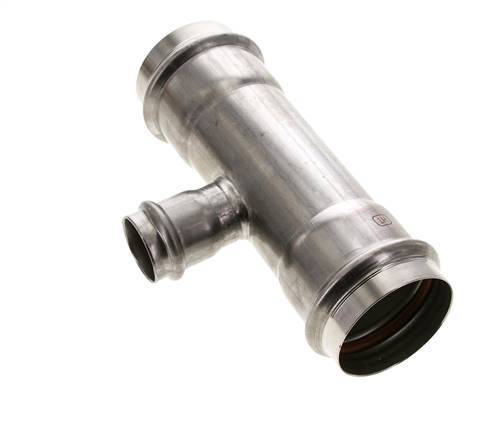

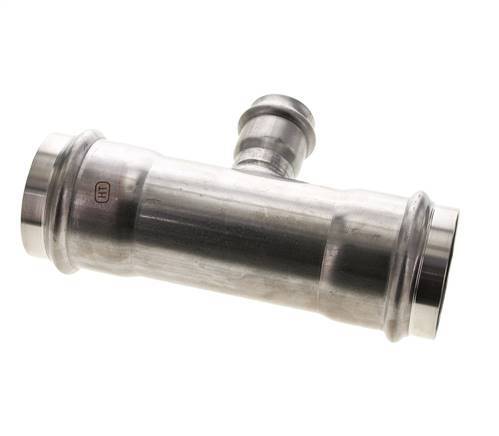

Tee Press Fitting - 28mm Female & 54mm - Stainless Steel
Image may vary slightly
See specifications for accurate information.
Reference:
F29VN
Brand:
Tameson
This is a tee press fitting made from stainless steel 1.4404. The fitting has three female press ports. Connection 1 is designed for a tube with an ou
- Regular price
- £67.27
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days
Description
Specifications
Related products
Description
This is a tee press fitting made from stainless steel 1.4404. The fitting has three female press ports. Connection 1 is designed for a tube with an outer diameter of 28 mm, connection 2 and 3 are designed for a tube with an outer diameter of 54 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F).
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
- Stainless steel material has better chemical resistance than other materials
