45deg Elbow Press Fitting - 54mm Female & 54mm Male - Copper alloy

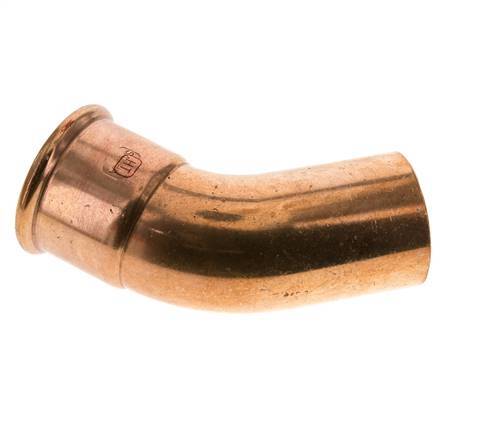

This is a 45 degree elbow press fitting made from copper alloy. The fitting has a male press (FTG) port and a female press port. Connection 1 is designed for a tube with an outer diameter of 54 mm and connection 2 has a male press connection with a 54 mm outer diameter. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 70 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
