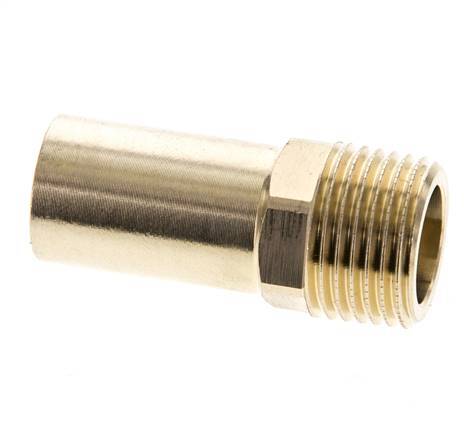

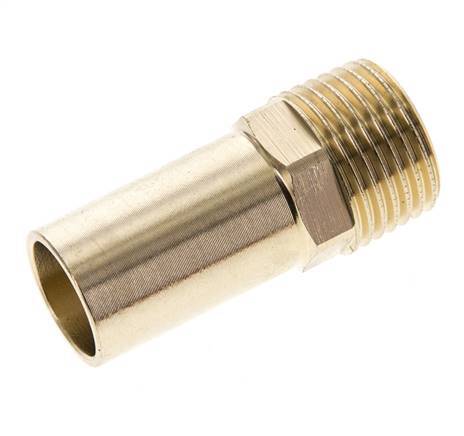

Press Fitting - 18mm Male & R 1/2'' Male - Copper alloy

This is a straight press fitting made from copper alloy. The fitting has a male press (FTG) port and a male threaded port. Connection 1 has a male press connection with a 18 mm outer diameter and connection 2 has R 1/2 inch male threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 47 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
