Press Fitting - 22mm Male & R 3/4'' Male - Stainless Steel
Image may vary slightly
See specifications for accurate information.
Reference:
F29YF
Brand:
Tameson

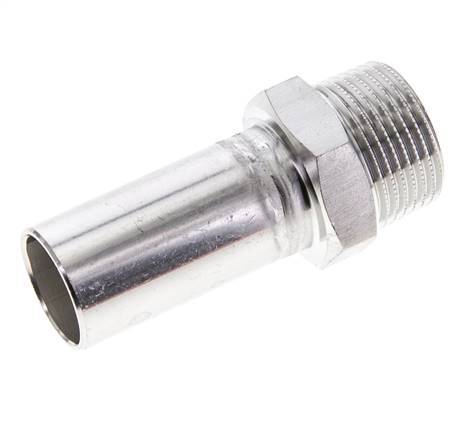

This is a straight press fitting made from stainless steel 1.4404. The fitting has a male press (FTG) port and a male threaded port. Connection 1 has
- Regular price
- £31.26
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days
Description
Specifications
Description
This is a straight press fitting made from stainless steel 1.4404. The fitting has a male press (FTG) port and a male threaded port. Connection 1 has a male press connection with a 22 mm outer diameter and connection 2 has R 3/4 inch male threads. The fitting has an FKM sealing ring. The maximum pressure is 40 bar (580 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 68 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
- Stainless steel material has better chemical resistance than other materials
