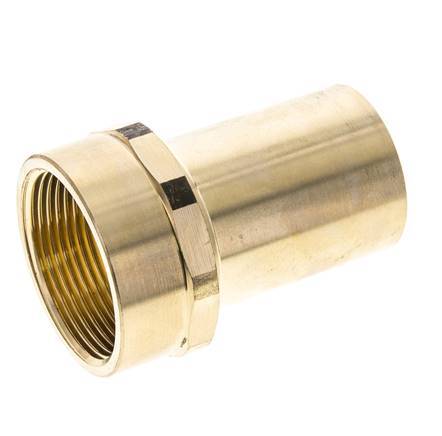

Press Fitting - 42mm Male & Rp 1-1/2'' Female - Copper alloy

This is a straight press fitting made from copper alloy. The fitting has a male press (FTG) port and a female threaded port. Connection 1 has a male press connection with an 42 mm outer diameter and connection 2 has Rp 1-1/2 inch female threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 80 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
