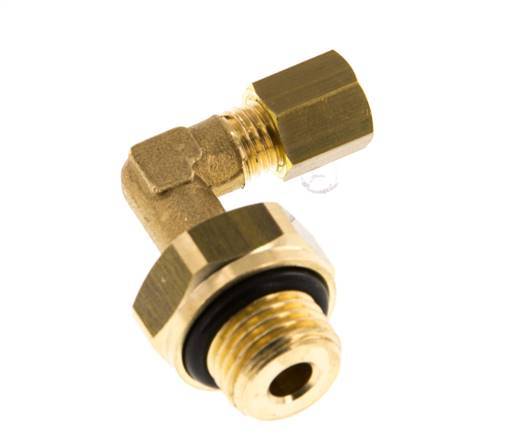

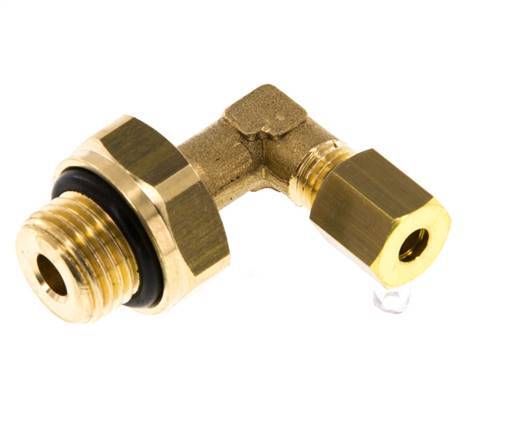

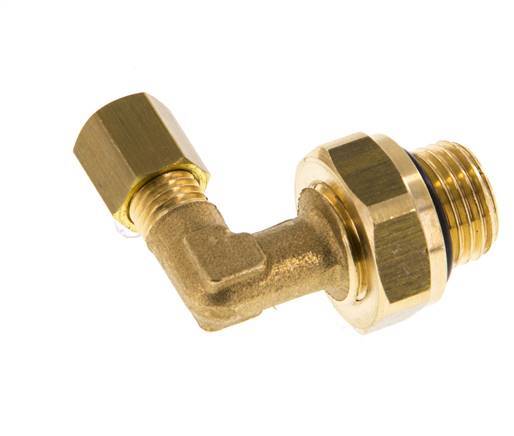

4mm & G1/4'' Brass Elbow Compression Fitting with Male Threads 150 bar NBR Adjustable DIN EN 1254-2

This brass elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has an adjustable connection. Connection 1 is a 4 mm compression ring with a M8x1 union nut. Connection 2 has male G 1/4 inch threads. The seal material is NBR. The maximum pressure is 150 bar (2175 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.

Pros:

• Adheres to DIN EN 1254-2
• It has adjustable connection
• Suitable for neutral and non-corrosive media

Cons:

• The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
