6mm & G1/4'' Brass Swivel Joint Compression Fitting with Male Threads 150 bar Polyamide DIN EN 1254-2

6mm & G1/4'' Brass Swivel Joint Compression Fitting with Male Threads 150 bar Polyamide DIN EN 1254-2
6mm & G1/4'' Brass Swivel Joint Compression Fitting with Male Threads 150 bar Polyamide DIN EN 1254-2
Image may vary slightly
See specifications for accurate information.
Reference: F2A22
Brand: Tameson
This brass elbow swivel joint is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 6 mm compressi
View all
£6.46
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 95 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

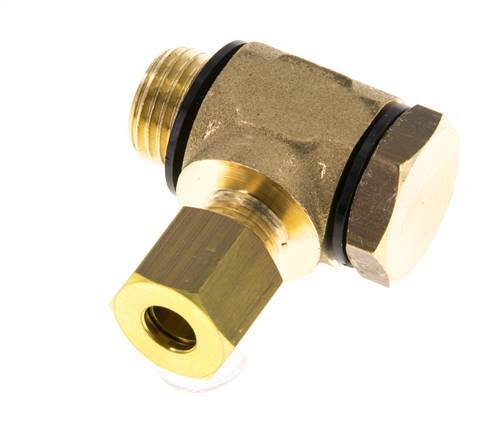

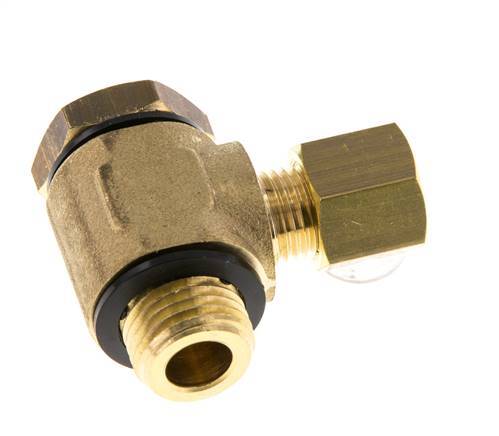

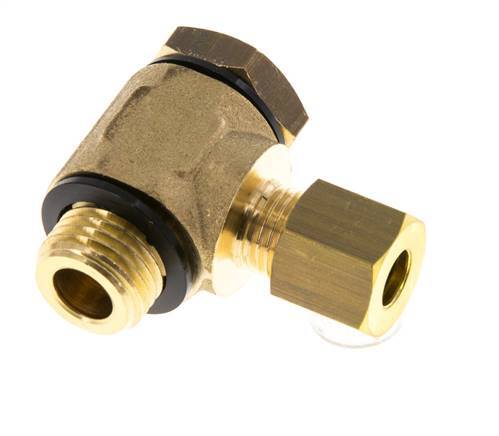

This brass elbow swivel joint is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 6 mm compression ring with a M10x1 union nut. Connection 2 has male G 1/4 inch threads. The seal material is Polyamide. The maximum pressure is 150 bar (2175 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.

Pros:

  • Adheres to DIN EN 1254-2
  • Suitable for neutral and non-corrosive media

Cons:

  • The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)

Specifications
