6mm Brass Straight Compression Fitting DN 1582 bar DIN EN 1254-2
Notice: This product is discontinued

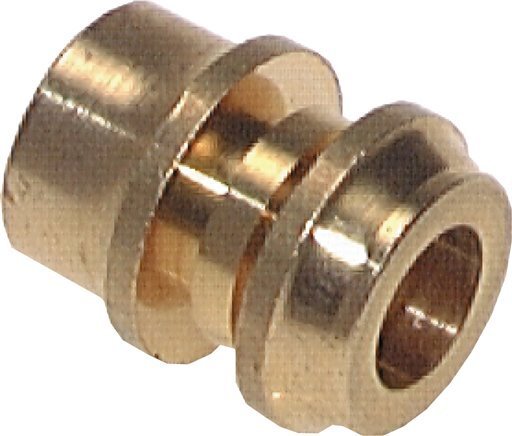

This brass straight screw connection is designed with two compression ring connection points. Connection 1 is a 6 mm compression ring with a M10x1 union nut. Connection 2 is a 6 mm compression ring with a M10x1 union nut. The maximum pressure is 82 bar (1189 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). The nominal diameter is 15 mm. It is made in accordance with DIN EN 1254-2.
Notice: This product is discontinued
Description
This brass straight screw connection is designed with two compression ring connection points. Connection 1 is a 6 mm compression ring with a M10x1 union nut. Connection 2 is a 6 mm compression ring with a M10x1 union nut. The maximum pressure is 82 bar (1189 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). The nominal diameter is 15 mm. It is made in accordance with DIN EN 1254-2.
Pros:
- Adheres to DIN EN 1254-2
- Suitable for neutral and non-corrosive media
