Image may vary slightly
See specifications for accurate information.
Reference: F2A4W-X2
Brand: Tameson

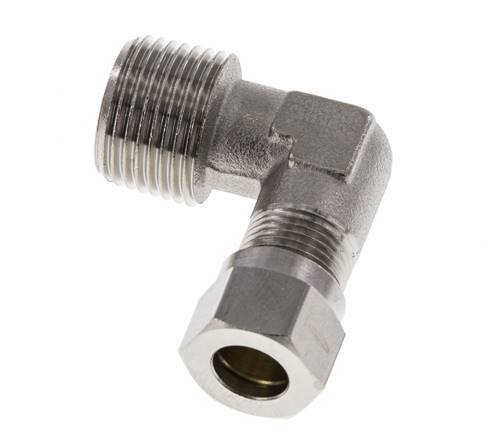

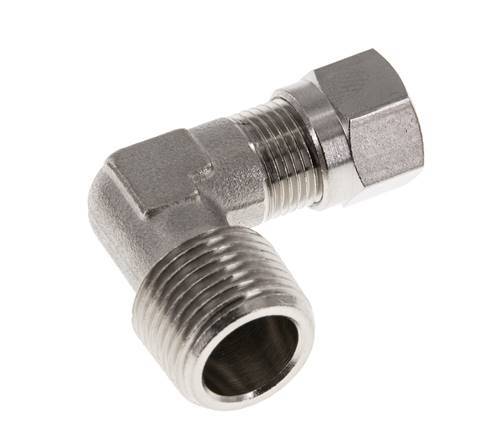

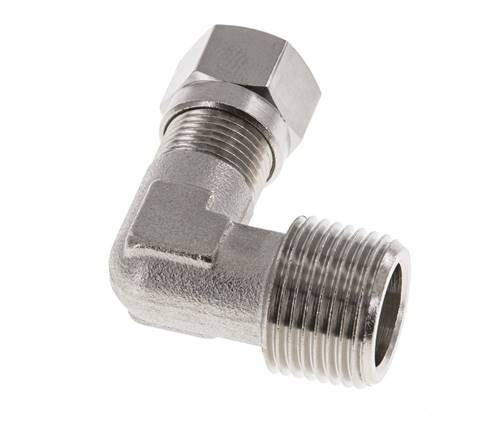

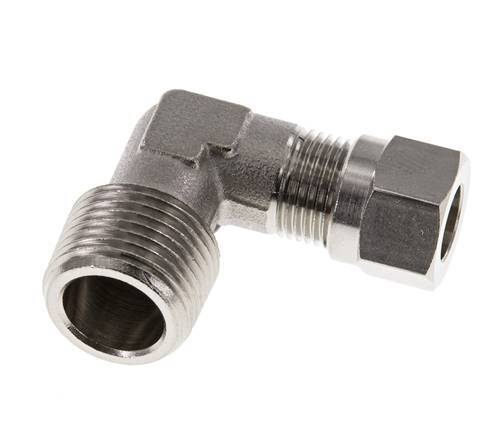

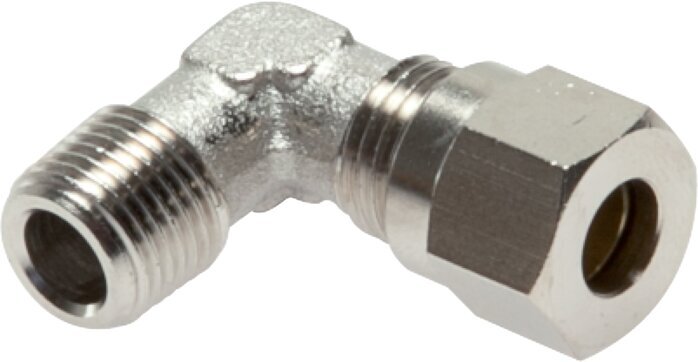

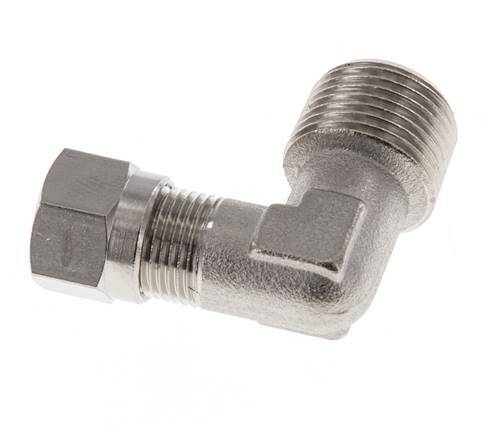

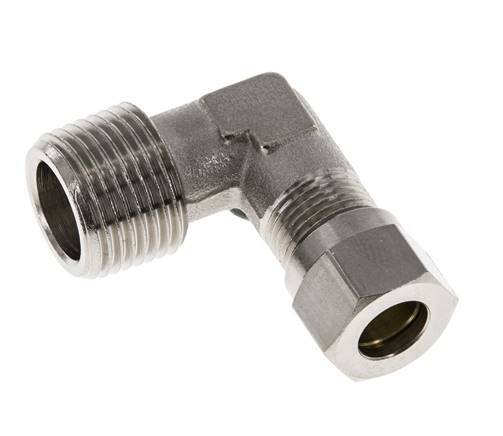

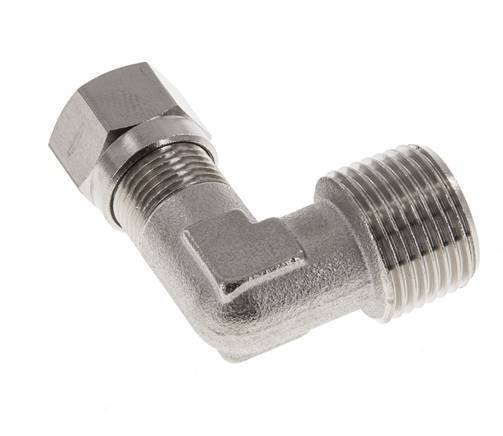

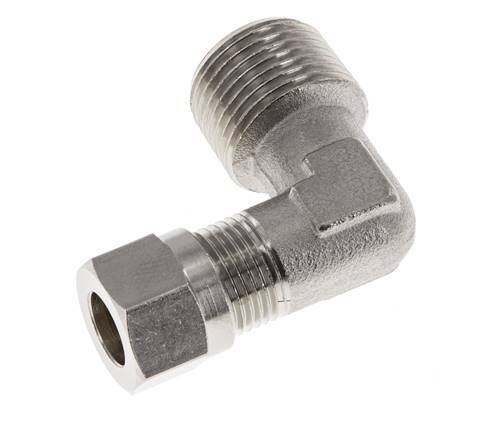

This nickel plated brass elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 has male R 3/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Contains 2 pieces

View all
£8.03
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Related products

Description

This nickel plated brass elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 has male R 3/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for neutral and non-corrosive media

Specifications

Thread
3/8 inch
Union nut threadi
M12x1
Load class (DIN 2353)
LL (very light)
Cutting ring connectioni
8 mm
Connection type
Cutting ring, Outer thread conical BSPT-R
Materiali
Brass
Max pressure at 20 °Ci
100 bar
Min temperaturei
-60 °C
Max temperaturei
300 °C
Standardi
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Brass
Surface protection connection 1
Nickel-platedi
Material connection 2
Brass
Shape
Elbow
Bend angle
90 °
With drain
No
