Image may vary slightly
See specifications for accurate information.
Reference: F2A57
Brand: Tameson

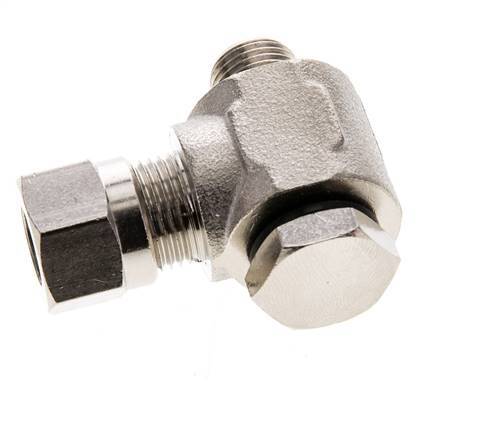

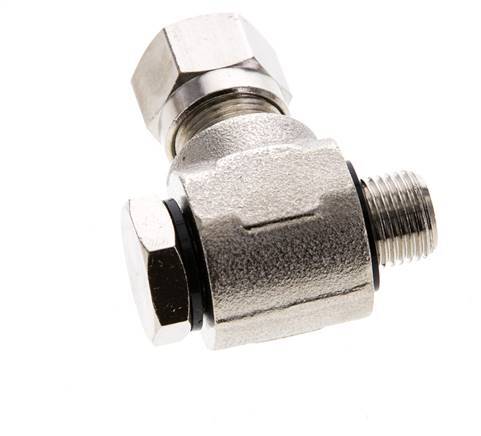

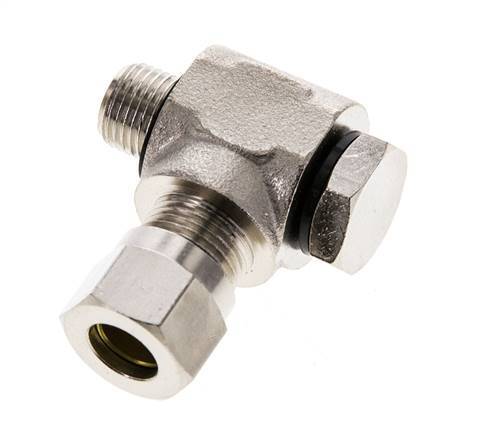

This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 has male G 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£5.12
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 80 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.88 / 5

378 reviews at TrustedShops

Description
Specifications
Downloads

Description

This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 has male G 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Thread connection is rotatable
  • Suitable for neutral and non-corrosive media

Downloads

Specifications

Thread
1/8 inch
Union nut thread
Thread size of the union nut
M12x1
Load class (DIN 2353)
LL (very light)
Cutting ring connection (mm)
Size of the cutting ring connection
8
Connection type
Cutting ring, Outer thread cylindrical BSPP-G
Material
Housing material.
Brass
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
100
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Shape
Elbow
Bend angle (°)
90
With drain
No
