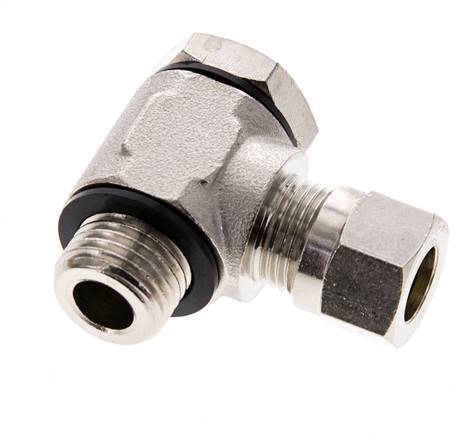

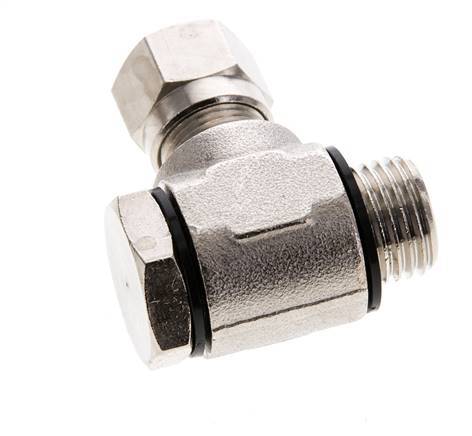

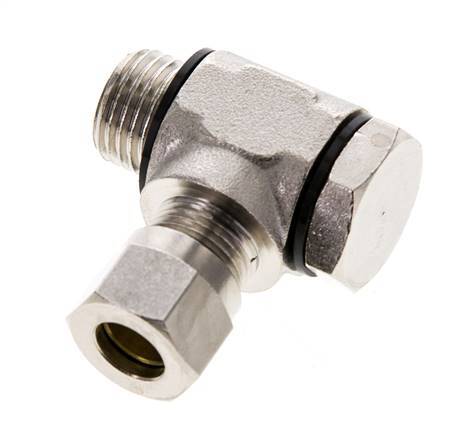

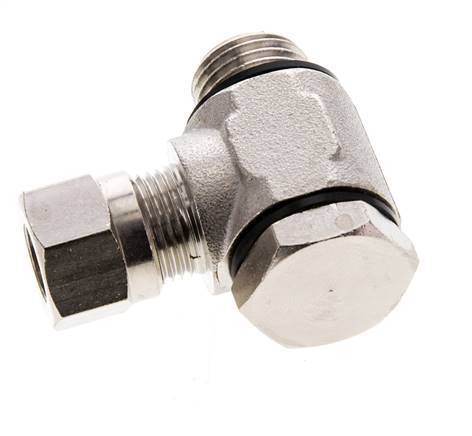

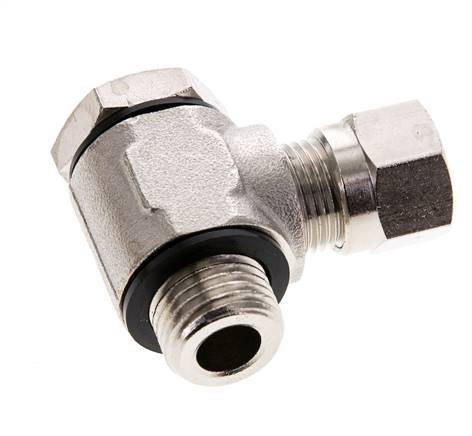

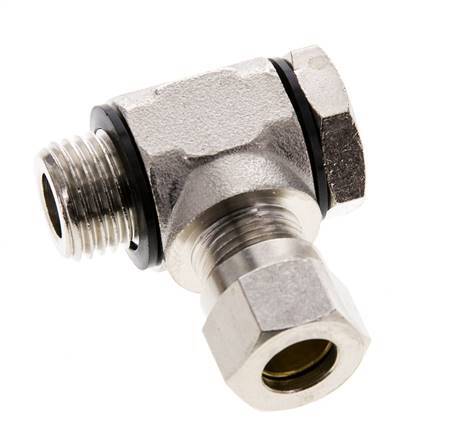

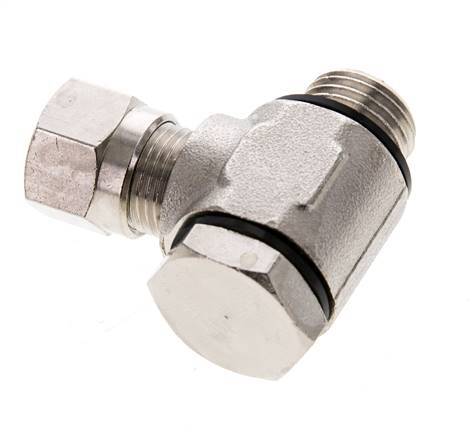

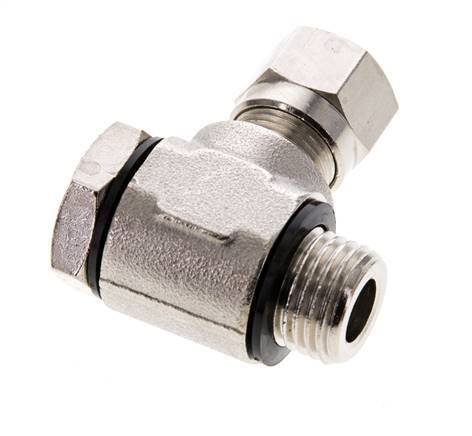

8LL & G1/4'' Nickel plated Brass Swivel Joint Cutting Fitting with Male Threads 100 bar Rotatable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2A58
Brand:
Tameson
This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection
- Regular price
- £4.82
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days
Description
Specifications
Description
This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 has male G 1/4 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Suitable for neutral and non-corrosive media
