10L & R1/4'' Nickel plated Brass T-Shape Tee Cutting Fitting with Male Threads 115 bar ISO 8434-1

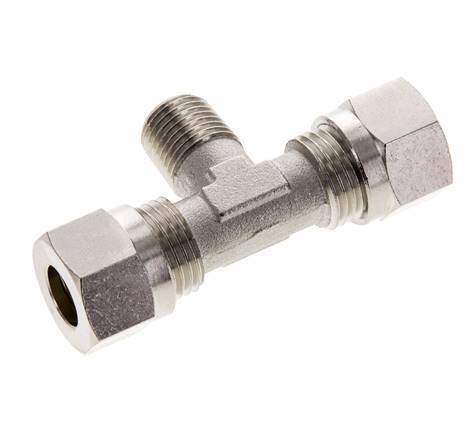

This nickel plated brass Tee screw in connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £7.70
Description
This nickel plated brass Tee screw in connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for neutral and non-corrosive media
