Image may vary slightly
See specifications for accurate information.
Reference: F2A65
Brand: Tameson

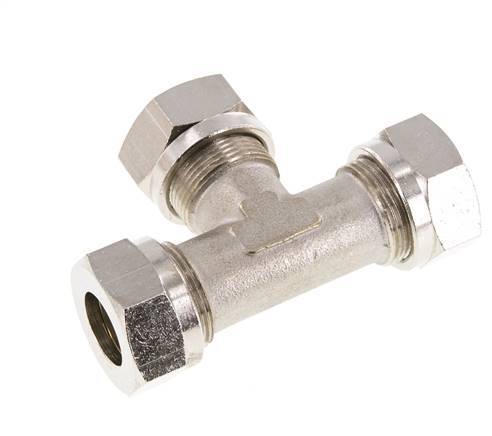

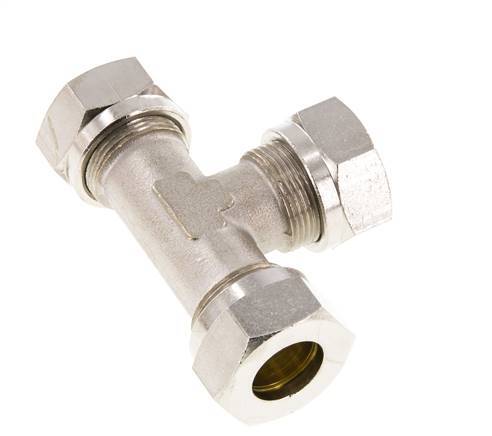

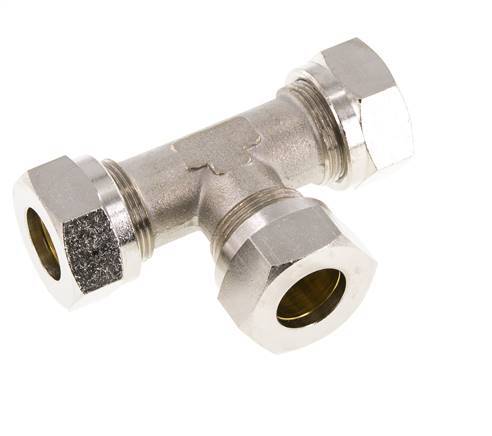

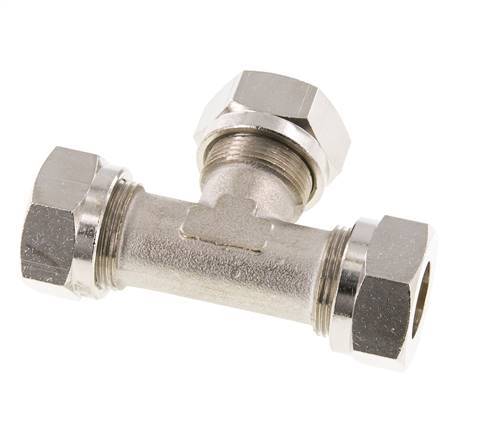

This nickel plated brass Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 18 mm cutting ring with a M26x1.5 union nut. Connection 2 is a 18 mm cutting ring with a M26x1.5 union nut.Connection 3 is a 18 mm cutting ring. The maximum pressure is 65 bar (943 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£27.68
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.88 / 5

378 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This nickel plated brass Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 18 mm cutting ring with a M26x1.5 union nut. Connection 2 is a 18 mm cutting ring with a M26x1.5 union nut.Connection 3 is a 18 mm cutting ring. The maximum pressure is 65 bar (943 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for neutral and non-corrosive media

Downloads

Specifications

Union nut thread
Thread size of the union nut
M26 x 1.5
Cutting ring connection (mm)
Size of the cutting ring connection
18
Load class (DIN 2353)
L (light)
Connection type
Cutting ring
Material
Housing material.
Brass
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
65
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
300
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Model
T-piece
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Surface protection connection 2
Nickel-plated
Material connection 3
Brass
Surface protection connection 3
Nickel-plated
With drain
No
