10L & UNF 7/16''-20 Zink plated Steel Straight Cutting Fitting with Male Threads 315 bar ISO 8434-1

Name: 10L & UNF 7/16''-20 Zink plated Steel Straight Cutting Fitting with Male Threads 315 bar ISO 8434-1
Brand: Tameson
SKU: F2ABN
Price: 13.54 GBP
Availability: InStock

Image may vary slightly

Reference: F2ABN

Brand: Tameson

This zink plated steel straight screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 i

View all

Regular price: £13.54

excl VAT

Quantity

In stock Ships in 2d On request On request

0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: £6.95

Free for orders > £75.00

Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Description

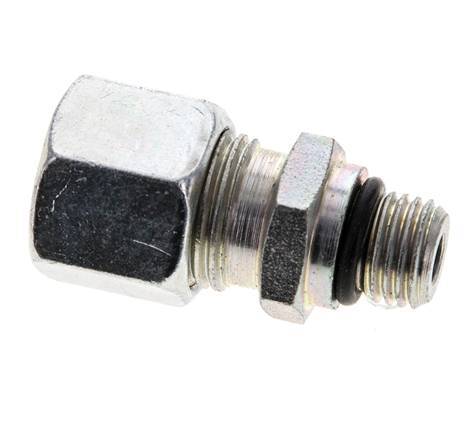

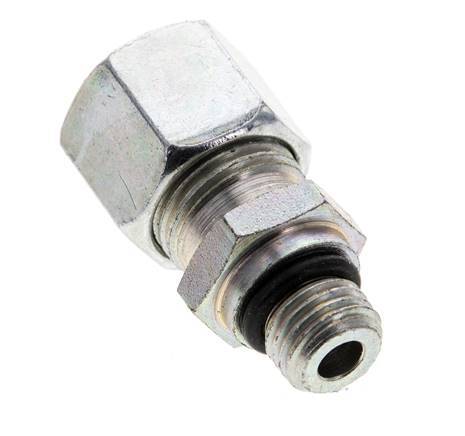

This zink plated steel straight screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 has male UNF 7/16 inch-20 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
