Image may vary slightly
See specifications for accurate information.
Reference: F2ACJ
Brand: Tameson

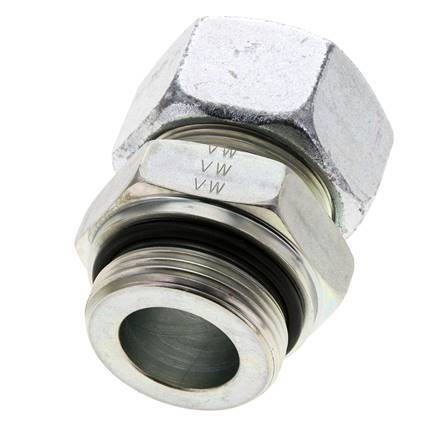

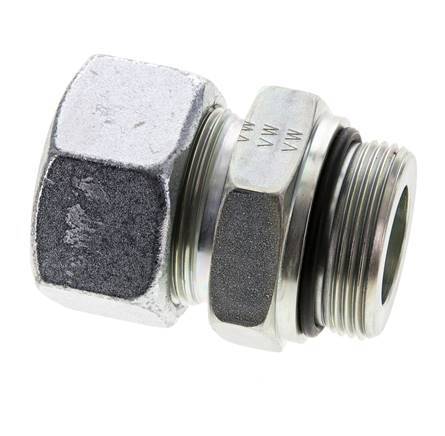

This zink plated steel straight screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 30 mm cutting ring with a M42x2 union nut. Connection 2 has male UN 1-5/8 inch-12 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£53.14
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This zink plated steel straight screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 30 mm cutting ring with a M42x2 union nut. Connection 2 has male UN 1-5/8 inch-12 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications

Downloads

Specifications

Thread
UN 1-5/8-12
Union nut thread
Thread size of the union nut
M42 x 2
Load class (DIN 2353)
S (heavy)
Cutting ring connection (mm)
Size of the cutting ring connection
30
Connection type
Cutting ring, Outer thread flare (UNF)
Material
Housing material.
Steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
400
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
120
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Shape
Straight
With drain
No
