12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1

12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
12L & G1/4'' Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2AG7
Brand: Tameson
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable
View all
£28.47
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Related products

Description

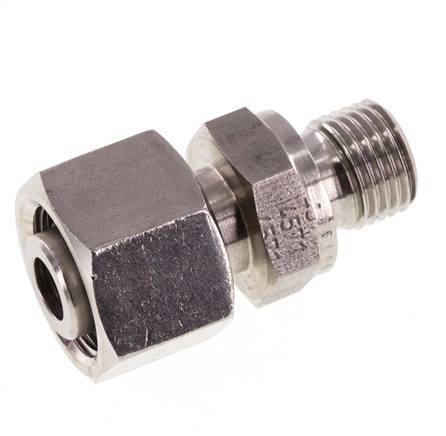

This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 12 mm swivel tube connection. Connection 2 has male G 1/4 inch threads. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications
