Image may vary slightly
See specifications for accurate information.
Reference: F2AJV
Brand: Tameson
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable conne
View all
£39.53
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

400 reviews at TrustedShops

Description
Specifications

Description

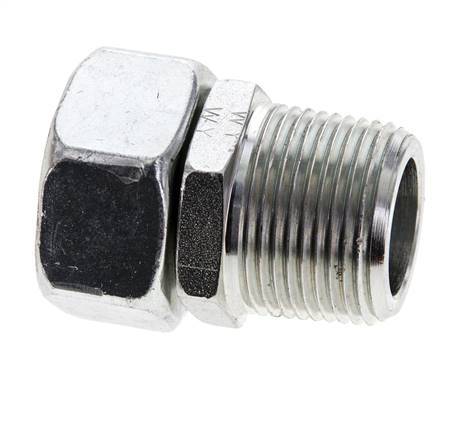

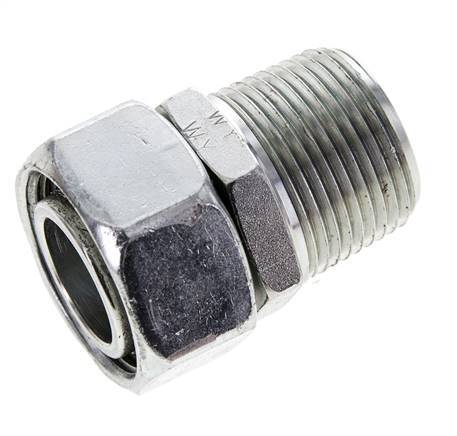

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 28 mm swivel tube connection. Connection 2 has male 1 inch NPT threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Suitable for hydraulic applications

Specifications
