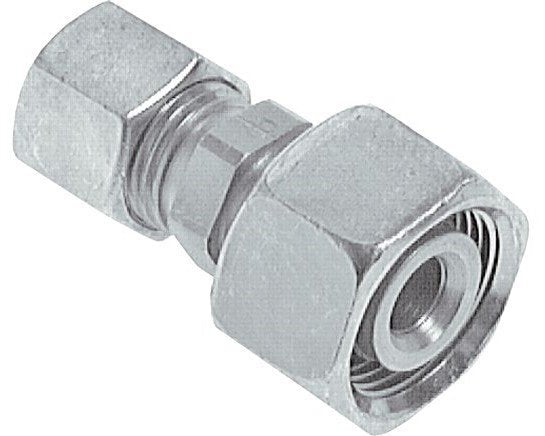

10L & 12L Zink plated Steel Straight Cutting Fitting with Swivel 315 bar ISO 8434-1 [2 Pieces]

Notice: This product is discontinued

Discontinued
10L & 12L Zink plated Steel Straight Cutting Fitting with Swivel 315 bar ISO 8434-1 [2 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: F2AMT-X2
Brand: Tameson

This zink plated steel straight screw in connection is designed with cutting ring and swivel tube connection ports. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 has a 12 mm swivel tube connection. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all

Notice: This product is discontinued

Description
Specifications
Related products

This zink plated steel straight screw in connection is designed with cutting ring and swivel tube connection ports. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 has a 12 mm swivel tube connection. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications
