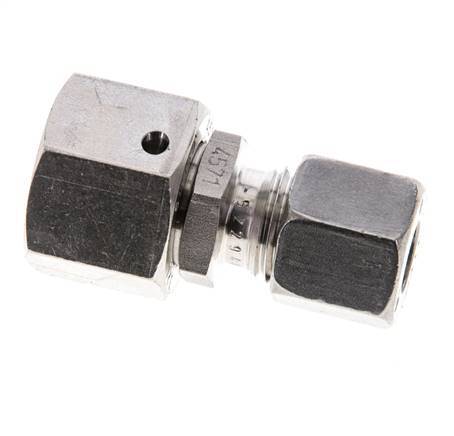

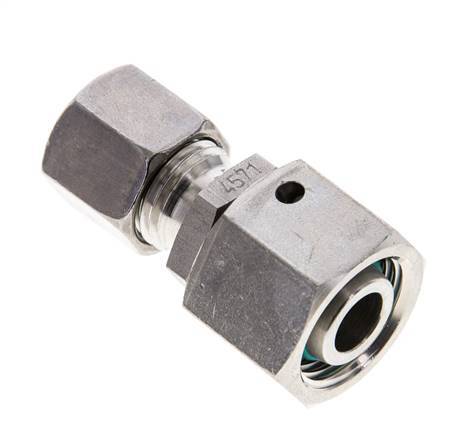

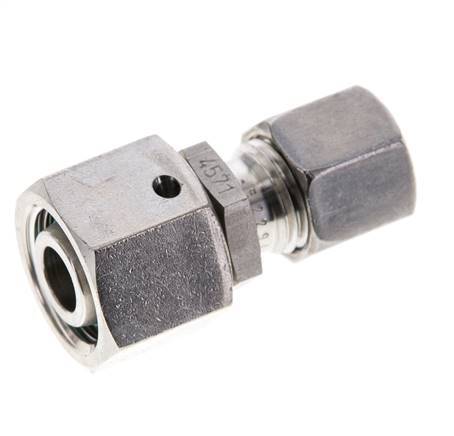

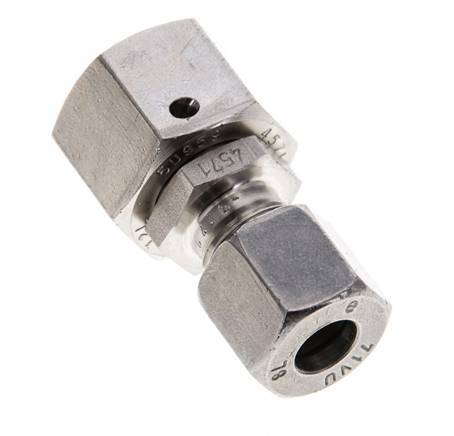

8L & 12L Stainless Steel Straight Cutting Fitting with Swivel 315 bar FKM O-ring Sealing Cone ISO 8434-1
This stainless steel 1.4571 straight screw in connection is designed with cutting ring and swivel tube connection ports. Connection 1 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 2 has a 12 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £41.96
Description
This stainless steel 1.4571 straight screw in connection is designed with cutting ring and swivel tube connection ports. Connection 1 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 2 has a 12 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- With O-ring and sealing cone
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
