12L & 18L Stainless Steel Straight Compression Fitting with Swivel 315 bar FKM O-ring Sealing Cone ISO 8434-1

Name: 12L & 18L Stainless Steel Straight Compression Fitting with Swivel 315 bar FKM O-ring Sealing Cone ISO 8434-1
Brand: Tameson
SKU: F2AXV
Price: 61.25 GBP
Availability: InStock

Image may vary slightly

Reference: F2AXV

Brand: Tameson

This stainless steel 1.4571 straight screw in connection is designed with compression ring and swivel tube connection ports. Connection 1 is a 12 mm c

View all

Regular price: £61.25

excl VAT

Quantity

In stock Ships in 2d On request On request

0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: £6.95

Free for orders > £75.00

Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Description

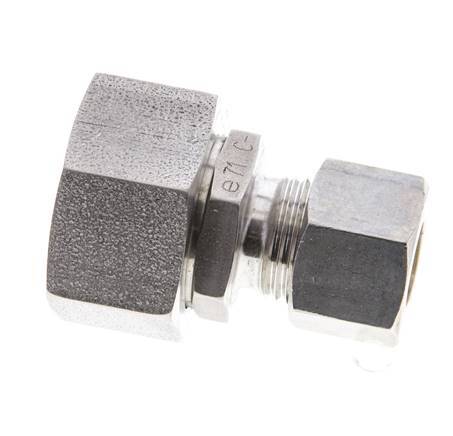

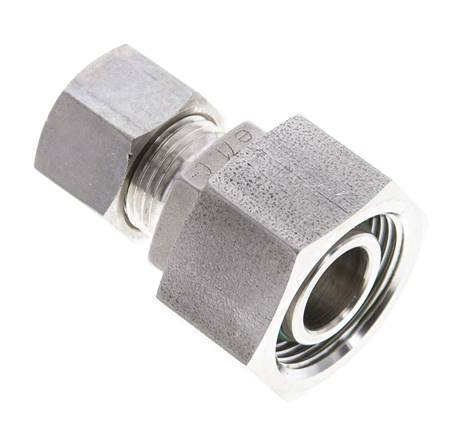

This stainless steel 1.4571 straight screw in connection is designed with compression ring and swivel tube connection ports. Connection 1 is a 12 mm compression ring with a M18x1.5 union nut. Connection 2 has a 18 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

Adheres to DIN EN ISO 8434-1 (DIN 2353)
With O-ring and sealing cone
Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
Suitable for use in gas and water area
Stainless steel material has better chemical resistance than other materials
Suitable for hydraulic applications
