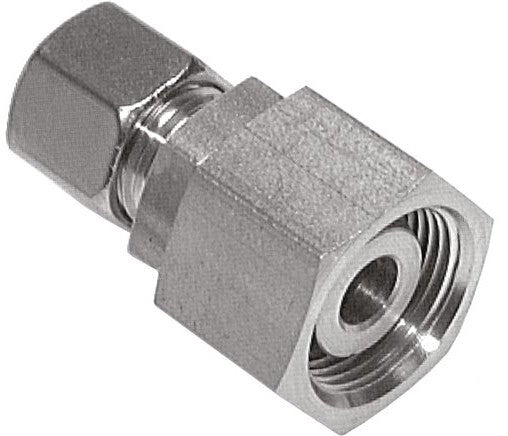

12S & 30S Stainless Steel Straight Compression Fitting with Swivel 250 bar FKM O-ring Sealing Cone ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2AZH
Brand:
Tameson
This stainless steel 1.4571 straight screw in connection is designed with compression ring and swivel tube connection ports. Connection 1 is a 12 mm c
- Regular price
- £137.37
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days
Description
Specifications
Related products
Description
This stainless steel 1.4571 straight screw in connection is designed with compression ring and swivel tube connection ports. Connection 1 is a 12 mm compression ring with a M20x1.5 union nut. Connection 2 has a 30 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- With O-ring and sealing cone
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
