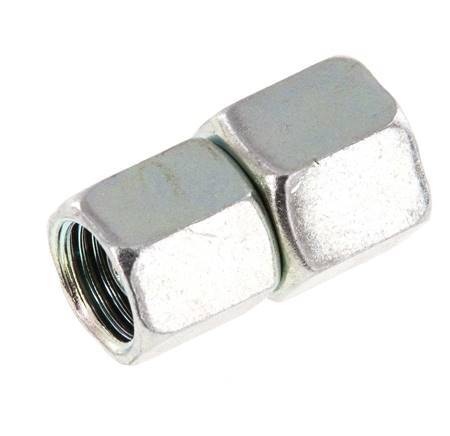

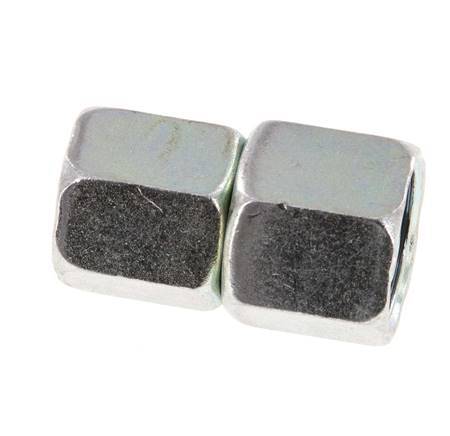

6S & 8S Zink plated Steel Straight with Swivel 630 bar NBR O-ring Sealing Cone ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2B2G
Brand:
Tameson
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. Connection 1 has a 6 mm sw
- Regular price
- £26.29
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Description
Specifications
Related products
Description
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. Connection 1 has a 6 mm swivel tube connection. Connection 2 has a 8 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- With O-ring and sealing cone
- Suitable for hydraulic applications
