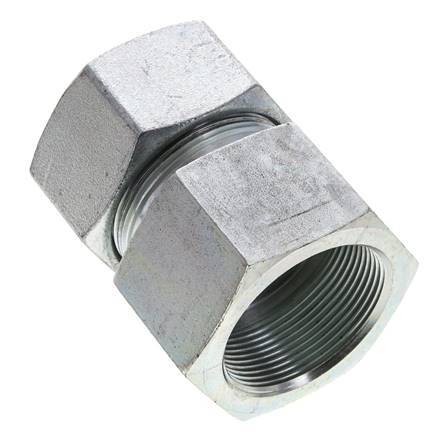

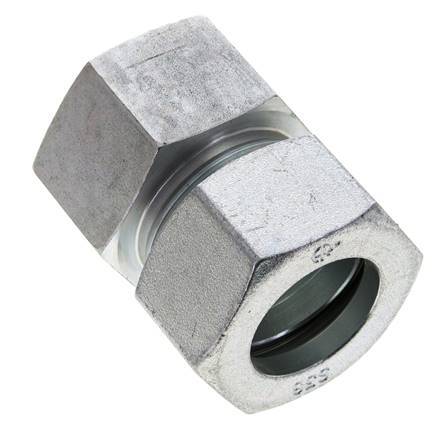

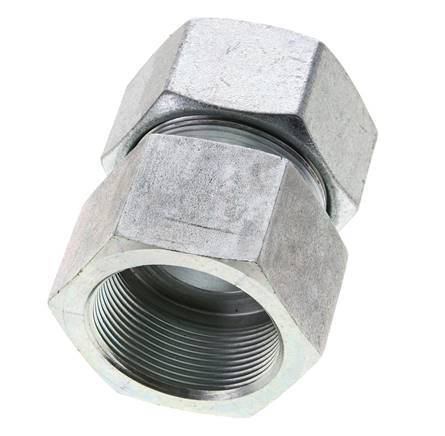

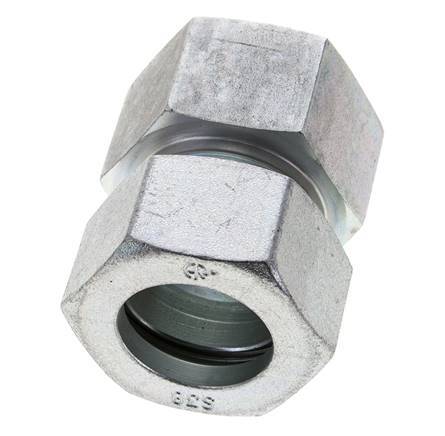

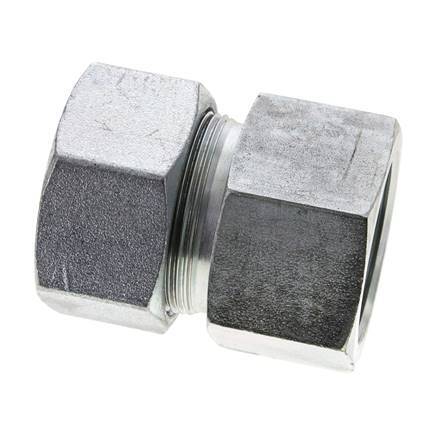

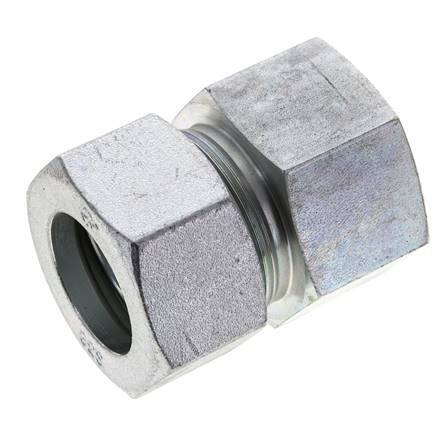

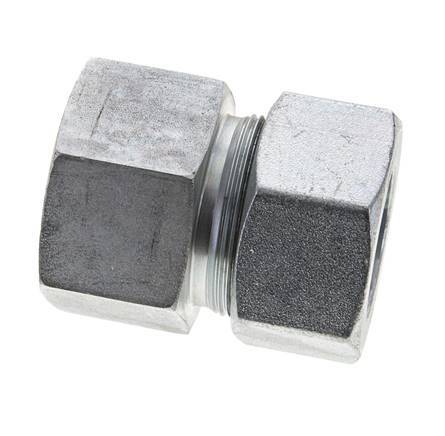

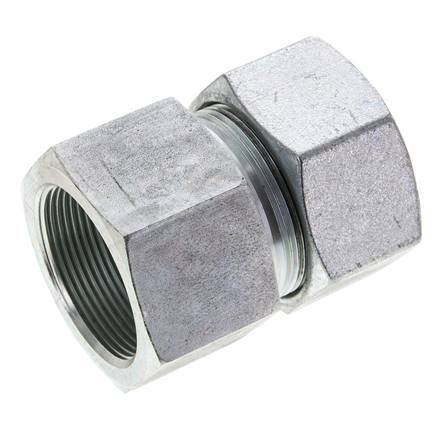

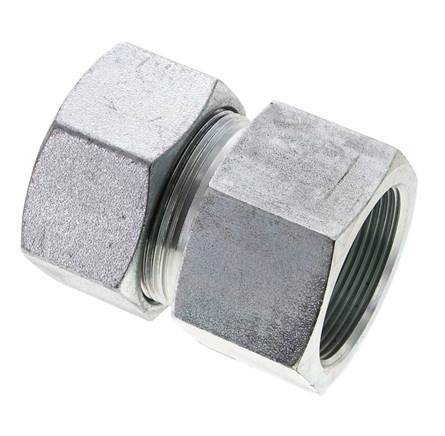

38S & M48x2 Zink plated Steel Straight Cutting Fitting with Female Threads 315 bar ISO 8434-1

38S & M48x2 Zink plated Steel Straight Cutting Fitting with Female Threads 315 bar ISO 8434-1
38S & M48x2 Zink plated Steel Straight Cutting Fitting with Female Threads 315 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2B4T
Brand: Tameson

This zink plated steel straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 38 mm cutting ring with a M52x2 union nut. Connection 2 has female M 48x2 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£117.71
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.88 / 5

378 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This zink plated steel straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 38 mm cutting ring with a M52x2 union nut. Connection 2 has female M 48x2 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications

Downloads

Specifications

Thread
M48 x 2
Union nut thread
Thread size of the union nut
M52 x 2
Load class (DIN 2353)
S (heavy)
Cutting ring connection (mm)
Size of the cutting ring connection
38
Connection type
Cutting ring, Inner thread metric
Material
Housing material.
Steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
315
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
120
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Shape
Straight
With drain
No
